Product Details:
Payment & Shipping Terms:
|
Certification: | CE,ROHS | Wattage: | 28w 42w |
---|---|---|---|
Application: | Indoor | Color Temperature: | 2700-7000K |
Dimension: | 600*600*13mm | LED Source: | Super Bright SMD 5630 |
Input Voltage: | 85-265VAC | Warranty: | 3years |
High Light: | round led panel light,dimmable led panel light |
Office Ultra Thin Recessed LED Panel Light 13mm Warm White 100 ml / Watt
Product advantages
1. super slim designing
2. convenient for installing , can be both installed by hanging and surface mounted
3. high light output effiency
4. low maitance .
5. fast delivery , 2 weeks after order confirmation
Model |
SP-PL36W |
||
Input Voltage |
AC90-264V 50/60Hz |
||
Dimension |
L597*W597*T13mm |
||
Lighting Source |
96pcs5630 |
||
Power Consumption |
60W |
||
Color Temperature |
WW(2800~3300K) |
NW(4000~4500K) |
CW(6000~6500K) |
Luminosity |
≥5600lm |
≥5800lm |
6000m |
CRI(Ra) |
>75 |
||
Beam Angle |
180° |
||
Work Temperature |
-25℃~+45℃ |
||
Material |
Alu+PMMA |
||
GW |
5.2kg |
||
NW |
4.5kg |
||
Cap ends |
/ |
||
Lifespan (LED) |
≥50,000hrs (70% Lumen Maintenance) |
||
IP Rating |
IP50 |
||
Lumen Attenuation |
<5% @ 5,000hrs |
||
Packing Dimension |
L710*W640*H34mm |
.
Maintenance:
A.
Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit, especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.
B As there is high voltage circuit inside the product, during maintenance pls don’t dissemble orhand touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.
Product Size :
Producing steps and aging pictures
Note:
a) Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , please do not force squeezing or through the ceiling
b) please placed panel lamp handle with care, ensure the products shine with the best effect
c) Choose embedded installation LED panel lamp, first consideration that whether the panel light and the size of the ceiling corresponds

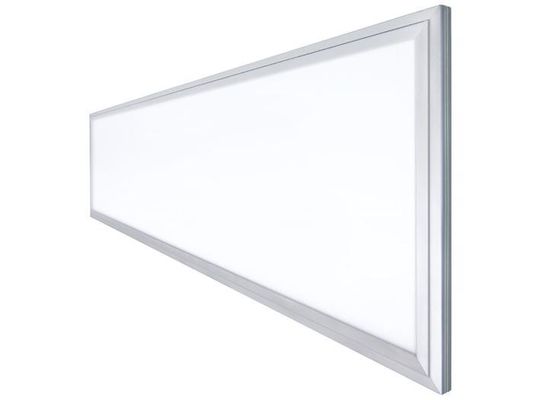

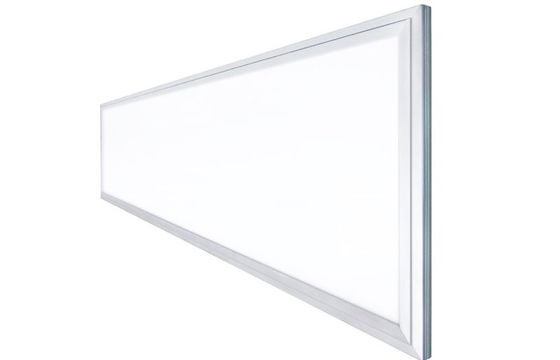

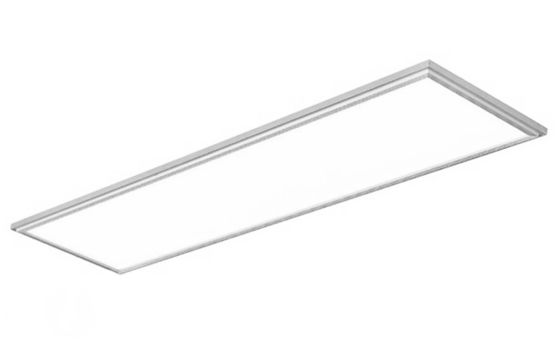

Product Picture
FQA:
1. Can you offer extra components for orders
yes , if the order is been confirmed , we can provide some extra components for your
future replacment
2. can we print our logo on the carton
yes , please provide us the desgining of the logo , we will print on the export carton
