18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630

China 18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630 supplier
18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630 supplier 18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630 supplier 18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630 supplier

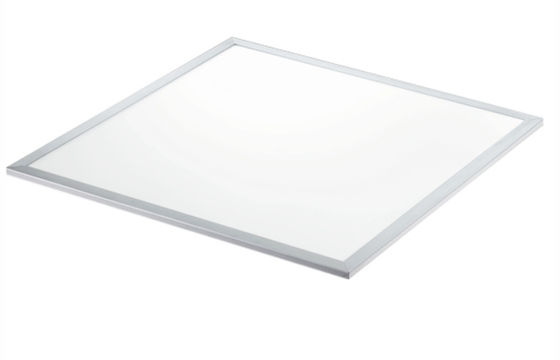

Large Image :  18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630

Product Details:

Place of Origin: China
Brand Name: Superolux
Model Number: SP-PLCE406060

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Netural package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T o
Supply Ability: 10Kpcs per month
Detailed Product Description
Certification: CE,ROHS Wattage: 18W
Application: Indoor Color Temperature: 3000k
Dimension: 600*600*13mm LED Source: Super Bright SMD 5630
Input Voltage: 85-265VAC Warranty: 3years
High Light:

round led panel light

,

dimmable led panel light





18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630





Model

SP-PLCE306030

Input Voltage

AC90-264V 50/60Hz

Dimension

L597*W297*T11mm

Lighting Source

96pcs 5630

Power Consumption

30W

Color Temperature

WW(2800~3300K)

NW(4000~4500K)

CW(6000~6500K)

Luminosity

≥2450lm

≥2550lm

≥2580lm

CRI(Ra)

>75

Beam Angle

180°

Work Temperature

-25℃~+45℃

Material

Alu+PMMA

GW

2.6kg

NW

2.4kg

Cap ends

/

Lifespan (LED)

≥50,000hrs  (70% Lumen Maintenance)

IP Rating

IP50

Lumen Attenuation

<5% @ 5,000hrs

Packing Dimension

L670*W330*H34mm



Product advantages



1. super slim designing



2. convenient for installing , can be both installed by hanging and surface mounted



3. high light output effiency



4. low maitance .



5. fast delivery , 2 weeks after order confirmation

.



Item

Name

Qty

Unit

Remark

1

600*600 LED Panel Light

1

pc



This packing list for panel light only.

2

User Manual

1

pc

3

Driver

1

pc





Maintenance:



Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit, especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.



As there is high voltage circuit inside the product, during maintenance pls don’t dissemble

orhand touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.



18W IP20 Surface Mount Led Ceiling Panel Lights With Super Bright SMD 5630



















Product Feature :





A) Ultra thin design, 13mm in thickness.



B) Superior raw material.



C) Dimmable optional.



D) High quality light source.



E) Leading heat sink design, four light emission instead of backlight emission.



F) Wide range voltage input.



G) NO UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass.



H) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,

worldwide application.



I) Low energy consumption, saves 60% power comparing conventional light



J) 5 years lifespan (LED), 10 times more than traditional lamp.



K) Be equipped with short circuit, open circuit, lighting stroke, power surge, overcurrent,

over-voltage, overheat etc. protection circuit.



L) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,



worldwide application.



M) Easy to install, a perfect replacement for traditional fluorescent tube.



N) 5 years lifespan or > 50,000hrs (LED), 10 times more than traditional fluorescent tube.



O) Light diffusion lampshade or transparent lampshade, by customized.
