Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs

China Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs supplier
Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs supplier Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs supplier

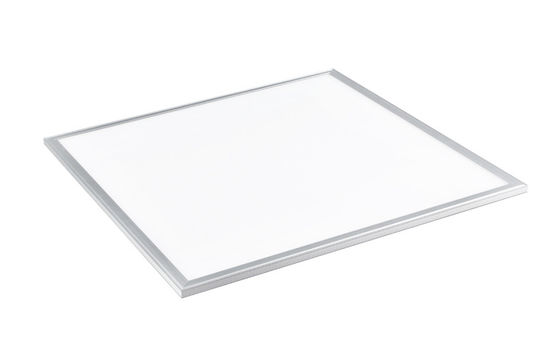

Large Image :  Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs

Product Details:

Place of Origin: China
Brand Name: Superolux
Certification: CE
Model Number: SP-PL606040

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: white box
Supply Ability: 50000pcs/week
Contact Now
Detailed Product Description
Power: 40w Voltage: 85-265V
IP Rate: Ip44 Lumen: 4000 Lumen
CCT: 6000k



Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs









A) Ultra thin design, 13mm in thickness.



B) Superior raw material.



C) Dimmable optional.



D) High quality light source.



E) Leading heat sink design, four light emission instead of backlight emission.



F) Wide range voltage input.



G) NO UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass.



H) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,

worldwide application.



I) Low energy consumption, saves 60% power comparing conventional light



J) 5 years lifespan (LED), 10 times more than traditional lamp.



K) Be equipped with short circuit, open circuit, lighting stroke, power surge, overcurrent,

over-voltage, overheat etc. protection circuit.



L) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,

worldwide application.



M) Easy to install, a perfect replacement for traditional fluorescent tube.



N) 5 years lifespan or > 50,000hrs (LED), 10 times more than traditional fluorescent tube.



O) Light diffusion lampshade or transparent lampshade, by customized.







Product advantages







Model SP-PL40-6060
Input Voltage AC90-264V 50/60Hz
Dimension L597*W597*T13mm
Lighting Source 96pcs5630
Power Consumption 36W
Color Temperature WW(2800~3300K) NW(4000~4500K) CW(6000~6500K)
Luminosity ≥3200lm ≥3300lm ≥3400lm
CRI(Ra) >75
Beam Angle 180°
Work Temperature -25℃~+45℃
Material Alu+PMMA
GW 5.2kg
NW 4.5kg
Cap ends /
Lifespan (LED) ≥50,000hrs (70% Lumen Maintenance)
IP Rating IP50
Lumen Attenuation <5% @ 5,000hrs
Packing Dimension L710*W640*H34mm

.



Item Name Qty Unit Remark
1 600*600 LED Panel Light 1 pc



This packing list for panel light only.

2 User Manual 1 pc
3 Driver 1 pc





Maintenance:



A.

Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit, especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.







B As there is high voltage circuit inside the product, during maintenance pls don’t dissemble orhand touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.

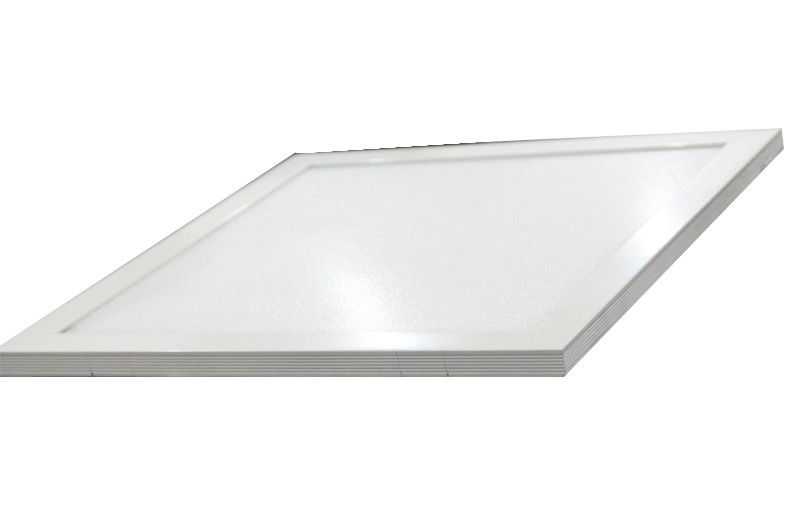

Product Size :Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs





Dimmable Slim IP44 13mm led panel light 600x600mm high power CE RoHs



Note:



a) Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , please do not force squeezing or through the ceiling


b) please placed panel lamp handle with care, ensure the products shine with the best effect


c) Choose embedded installation LED panel lamp, first consideration that whether the panel light and the size of the ceiling corresponds



Payment and delivery terms





1. T/T Western Union . Paypal for sample orders



2. except L/C . the balance payment must to be paid before shipping



3 the delivery time counts start from the date we get the downpayment





Package details :



we offer standar export carton with netural package , for any requirement of OEM package .



please contact with our sales team accodingly
