Product Details:
Payment & Shipping Terms:
|
Certification: | CE,ROHS | Wattage: | 36W 45W |
---|---|---|---|
Application: | Indoor/Outdoor | Color Temperature: | 7000K |
Dimension: | 600*600*13mm | LED Source: | Super Bright SMD 5630 |
Input Voltage: | 85-265VAC | Warranty: | 3years |
High Light: | 600x600 led ceiling lights,led panel 600x600 |

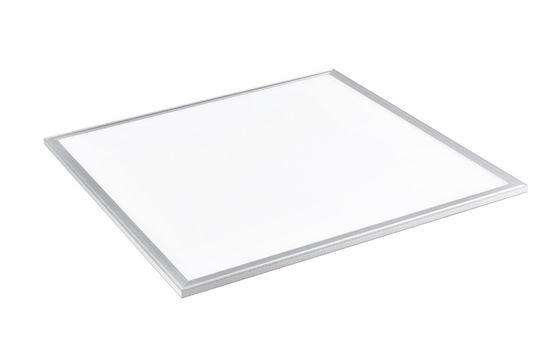

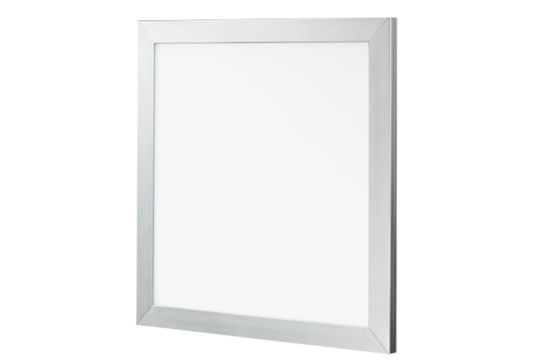

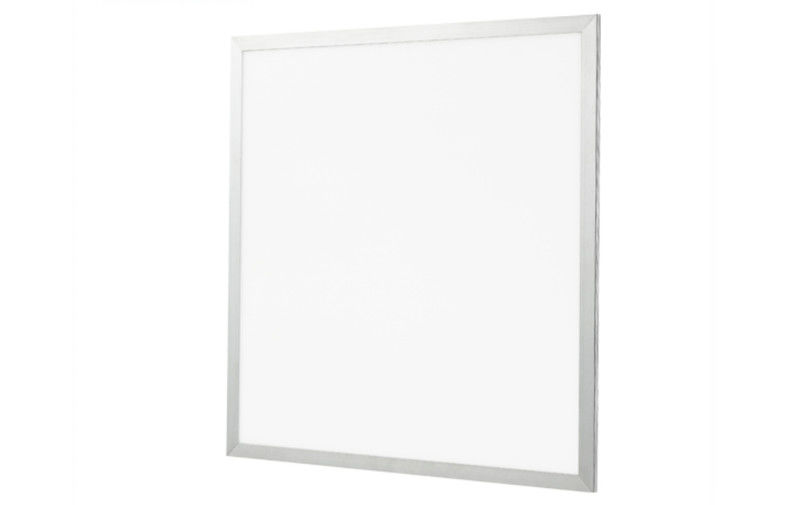

Indoor Recessed LED Panel Light 600X600 3400 Lumen 30w IP50 High Brightness
Mount methods :
Wall mounted / Ceiling mounted
Product review
1. Professional l design suitable for Outdoor led Lighting decoration
2. saving energy, enviromental firendly , watts and size are various
3. Lighting colour and finishing colour are various
Product Features :
A) Ultra thin design, 13mm in thickness.
B) Superior raw material.
C) Dimmable optional.
D) High quality light source.
E) Leading heat sink design, four light emission instead of backlight emission.
F) Wide range voltage input.
G) NO UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass.
H) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,
worldwide application.
I) Low energy consumption, saves 60% power comparing conventional light
J) 5 years lifespan (LED), 10 times more than traditional lamp.
K) Be equipped with short circuit, open circuit, lighting stroke, power surge, overcurrent,
over-voltage, overheat etc. protection circuit.
L) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,
worldwide application.
M) Easy to install, a perfect replacement for traditional fluorescent tube.
N) 5 years lifespan or > 50,000hrs (LED), 10 times more than traditional fluorescent tube.
O) Light diffusion lampshade or transparent lampshade, by customized.
Product Paramaters:
Model |
SP-30W-6060 |
||
Input Voltage |
AC90-264V 50/60Hz |
||
Dimension |
L597*W597*T13mm |
||
Lighting Source |
96pcs5630 |
||
Power Consumption |
30w |
||
Color Temperature |
WW(2800~3300K) |
NW(4000~4500K) |
CW(6000~6500K) |
Luminosity |
≥3200lm |
≥3300lm |
≥3400lm |
CRI(Ra) |
>75 |
||
Beam Angle |
180° |
||
Work Temperature |
-25℃~+45℃ |
||
Material |
Alu+PMMA |
||
GW |
5.2kg |
||
NW |
4.5kg |
||
Cap ends |
/ |
||
Lifespan (LED) |
≥50,000hrs (70% Lumen Maintenance) |
||
IP Rating |
IP50 |
||
Lumen Attenuation |
<5% @ 5,000hrs |
||
Packing Dimension |
L710*W640*H34mm |
Maintenance:
Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit, especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.
As there is high voltage circuit inside the product, during maintenance pls don’t dissemble
orhand touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.
Producing steps and aging pictures
Inspection services :
Our Quality control team will inspect the goods for every cargo
Shipping Services
make the booking form , contact the forwarder ,arrange the vessel , make telease release for the
container , provide all kind of documents for customers import works
How to make sure the quality ?
1. die cast alumium body , with best thermal conductivity to make sure the heat disspiation and make sure the life span of the product
2. reasonable inner desining for the leds boards with super bright chips .
3. good quality led driver
4, strict quality control after assmbing
5. off/on aging test for 24 hours
