CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted

China CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted supplier
CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted supplier CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted supplier

Large Image :  CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted

Product Details:

Place of Origin: China
Brand Name: superolux
Certification: CE,RoHS,SAA
Model Number: SP-MLGC20W

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: OEM package/standard export package
Contact Now
Detailed Product Description
Material: Die-cast Aluminum Housing IP Rate: IP65
IK Rate: IK 10 Power: 20W
Luminous Flux: 1600 Lumen Voltage: 85-265VAC
CCT: 3000K /4000K/6000K

Description :superolux lighting produced series of bulkhead wall light with various power and shapes , one of the



best selling item is the round shape with 300*300*90 lumen . with Die-cast Aluminum houisng heat disspiate ,



IK10 , IP65 , 3 years warranty are offered .the item with grill is more protected for the luminaries E27 version



,standard led version , mostion sensor type ,emergency accu pack type both can be provided .





4 Electricity Parameters:



NO Items Parameters
1 Input Voltage 90-265V 42-63HZ
2 Input Current 0.114A(230V)
3 Power 20W
4 Output Voltage 30V
5 Output Current 0.67A
6 Power Factor >0.9PF
7 Luminous Efficiency ≥85%

4.

Opitical Parameters:



NO Items Parameters
1 Beam angel (H,V) 115°
2 Peak Light Intensity 514cd
3 Luminous Flux 1600Lm
4 Color Rendering Index ≥70Ra
5 Color Temperature 2800-3200k /4000-4500k/5500-6000k



physical Parameters:



NO Items Parameters
1 Working temperature -40°— 60°
2 IP range IP65
3 N.W 1.3Kg
4 Length 300mm
5 Width 300mm
6 Height 80mm





Product drawing :

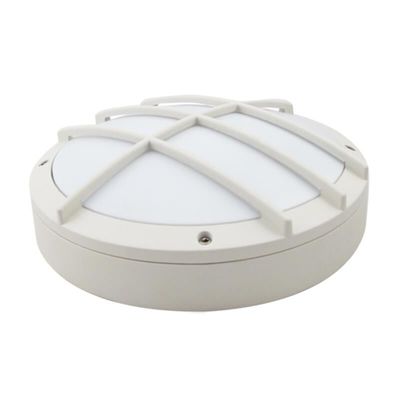

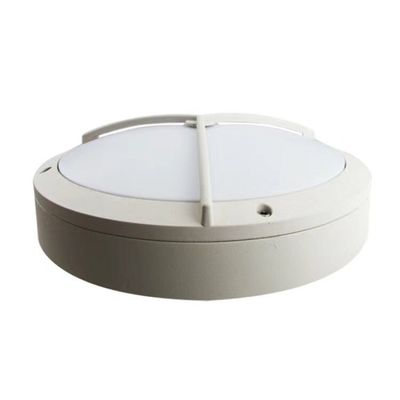

CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted

CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted





Applications


CE RoHs Listed outside Bulkhead Wall Light with grill surface / wall mounted
