20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

China 20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside supplier
20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside supplier 20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside supplier 20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside supplier

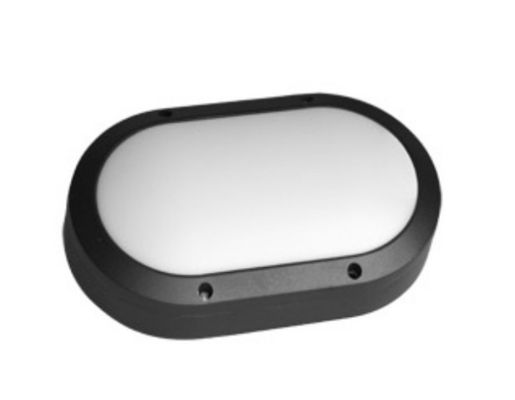

Large Image :  20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

Product Details:

Place of Origin: China
Brand Name: superolux
Certification: ce,rosh,saa
Model Number: SP-MLGO-280

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 50000pcs/week
Packaging Details: white box
Supply Ability: 50000pcs/week
Contact Now
Detailed Product Description
Product Name: Outdoor Light Fixture Power: 20w
LED Brand: Epistar Luminous Flux: 1600lm
Voltage: 85-265VAC IP Rate: IP 65
IK Rate: IK 10

2

20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside





         Product Description : the LED bunker light /bulkhead wall light is an series of production

 d  designed with Die cast Alumininum housing ,ip65 rate ,ik10 impact resistance , suitable for all

     kinds of outside applications  is an ideal choose for outdoor lighting projects





           LED bunker light paramters :

c



1.  1.Electricity Parameters:









NO Items Parameters
1 Input Voltage 90-265V 42-63HZ
2 Input Current 0.114A(230V)
3 Power 20W
4 Output Voltage 30V
5 Output Current 0.67A
6 Power Factor >0.9PF
7 Luminous Efficiency ≥85%

4.

2,Optical Parameters:

NO Items Parameters
1 Beam angel (H,V) 115°
2 Peak Light Intensity 514cd
3 Luminous Flux 1600Lm
4 Color Rendering Index ≥70Ra
5 Color Temperature 2800-3200k /4000-4500k/5500-6000k

4.

3,Physical Parameters:



NO Items Parameters
1 Working temperature -40°— 60°
2 IP range IP65
3 N.W 900g
4 Length 280mm
5 Width 180mm
6 Height 83mm



      20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

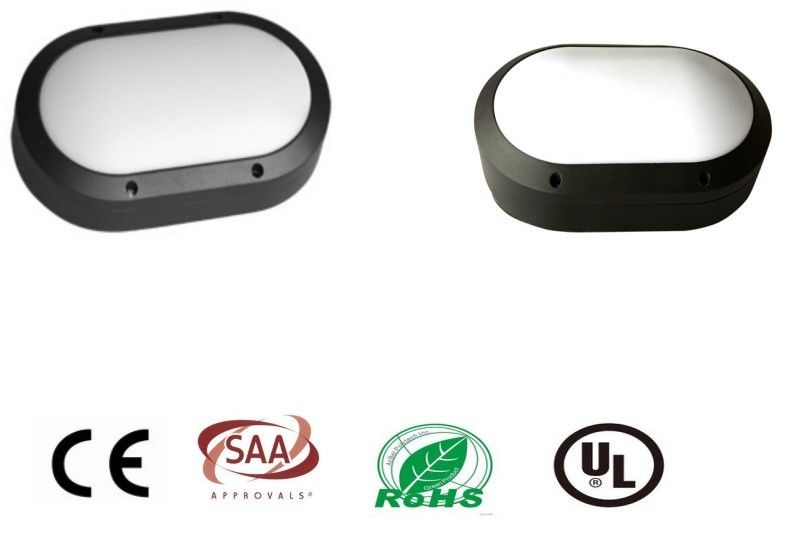

LED Bunker light Picture :

20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

Installation instructions :







1,remove two screw to fix the lamp on the wall, take another 2  screw to fix the



lamp base and lamp cover.



2,Installation methods : with the tapping screws installed two holes of base to specified



location( two holes are on the diagonal of base )

.

3,before  fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer  the expansion



bolt into the wall , Screw through the screw hole of lamp body , screw in the expansion bolt .



20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside



 LED Bunker light  competitive advantages :



1.2. IP65 waterproof, dustproof for indoor and outdoor lighting



2. Die-casting aluminum lamp body, excellent heat dissipation, UV resistance .corrosion



resistance , can be widely use in the moisture area ,like seasides .bathroom


3. frosted  white PC cover.


4. Stainless steel hexagon socket head cap screws


5. Can built-in motion sensor, Emergency time 1-3 hours


6. Black / white / grey aluminum housing color available



7. long working life , up to 50000hours
