Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Bulkhead Light | Power: | 20W |
|---|---|---|---|
| CCT: | 3000K/6000K/4500K | Voltage: | 90-277VAC |
| Warranty: | 5 Years Warranty | Beam Angle: | 360degree |
| Base: | E40 E39 B22 E27 | LED Brand: | Epistar |
| Luminous Flux: | 1600lm | ||
| High Light: | external bulkhead lights,square bulkhead light |
||

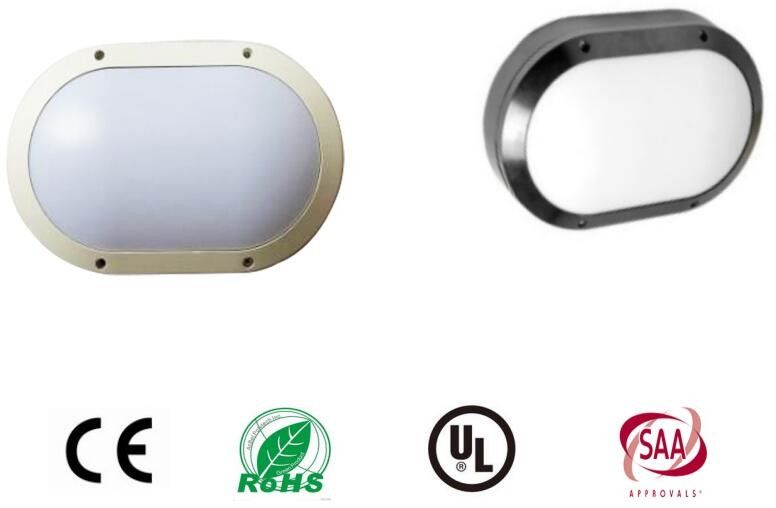

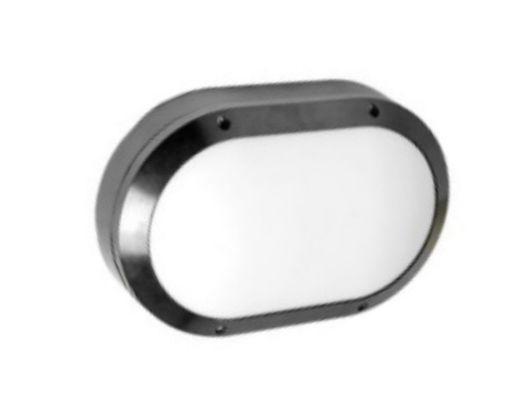

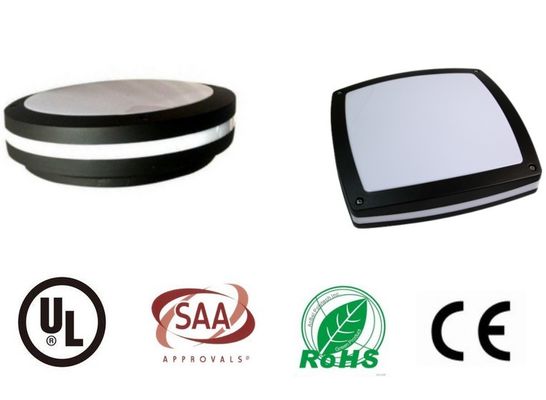

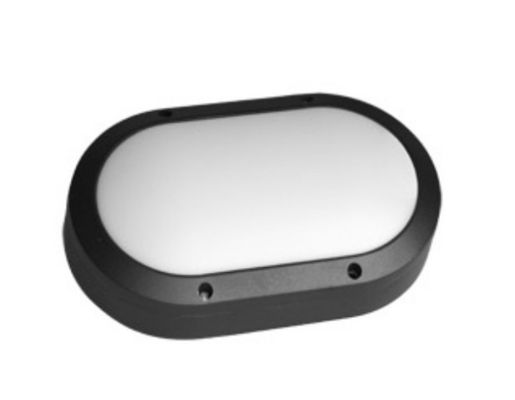

1600LM 6000k 3000k 4500k Waterproof Bulkhead Lights Ik10 For Outdoor Applications
The bulkhead wall light the main production in superolux lighting's production line , with designing
of IP65 . the series production can be widely used both indoor and outdoor . such as bathroom ,
steam room , villas near the sea etc ..
1 Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265VAC 47-63HZ |
| 2 | Input Current | 0.058A(230V) |
| 3 | Power | 10W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.34A |
| 6 | Power Factor | >0.9 |
| 7 | Luminous Efficiency | ≥85% |
,
2. Optical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 247cd |
| 3 | Luminous Flux | 800Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
,3. Physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 445g |
| 4 | Length | 280mm |
| 5 | Width | 135mm |
| 6 | Height | 65mm |
1. can be widely used in different applications for indoor and outdoor .
2. can be directly used in moisture enviroment such like bathroom ,spa ,kitchen ..etc.
3. unque apperances , round ,square ,oval shapes are aviable
4. beautiful apperances , white ,grey ,black finhsing colour ,powder painting or oil painting .
4. 3 years warranty are provided , after sales services are provided after selling
5 , easy to be installed ,surface mounted directly
