Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor LED Wall Light | Power: | 20W |
|---|---|---|---|
| Beam Direction: | Downward Beam | IP Rate: | IP65 |
| IK Rate: | IK 10 | Luminous Flux: | 1600lm |
| Highlight: | exterior led wall lights,outside wall mounted lights |
||

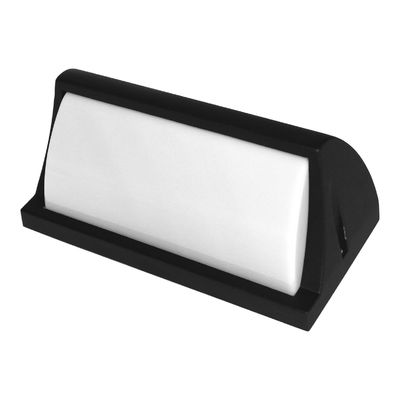

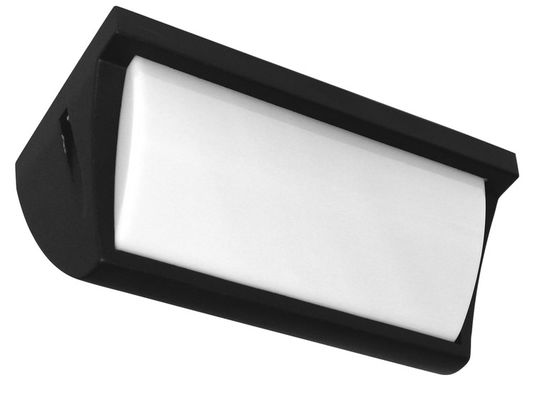

Ultra Thin Down beam light outdoor LED Wall light high luminous energy saving
Description : The outdoor led wall light is an item wall light with downward beam light .
P
Product Features : downward beam light . IP65 IK10
4.1,Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 85-265V 42-63HZ |
| 2 | Input Current | 0.114A(230V) |
| 3 | Power | 20W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Luminous Efficiency | ≥85% |
4.2,Optical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 514cd |
| 3 | Luminous Flux | 1600Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4.3,Physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 982g |
| 4 | Length | 250mm |
| 5 | Width | 125mm |
| 6 | Height | 110mm |
Product Drawing :
Light distrubute curve :
Installation instruction :
Attentions :
7.1,Take 2pcs 5*40mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the
lamp base and lamp cover.
7.2,Installation methods : with the tapping screws installed two holes of base to specified
location( two holes are on the diagonal of base )
.
7.3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion
bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over .
see the picture :
