Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Module Light | Applications: | LED Street Light Tunnel Light Canopy Light |
|---|---|---|---|
| LED Brand: | Cree | Lumen Output: | 140lm/Watt |
| High Light: | led industrial flood lights,industrial flood lights outdoor |
||
30W - 40w Cree Led Module Light For Led Street Light Kits Retrofit , 140lm / Watt
Descriptioin for LED module light :
The LED module light produced by superolux lighting is a series of Lighting productioin can be
used as components for LED street light /led tunnel light /led canopy light/led high bays , the LED
module light is with 6063 Aluminium body ,top brightness Cree XTE chip , with luminous Flux can
up to 140lm/Watt . it's an ideal choice for all kinds of industrial fixtures projects .
LED module light competitive advantages :
1. long workinfe life .50000working hours
2. various application , can be used in different LED lighting project ,especially for industrial light
3. best material , we choose the best raw material ,the 6063 Aluminium is one of the best
material for heat dissipiation to ensure the working life of the module light
4. Cree chip .140lm/Watt
LED module light parameters :
4. Electricity Parameters:
| NO | Items | Parameters |
| 1 | Power | 30W |
| 2 | Luminous Flux | 3000lm |
| 3 | Input Voltage | 12VAC |
| 4 | input current | 700ma |
| 5 | LED Chip | Cree |
| 6 | LED Brand | Cree XPE |
| 7 | Luminous Efficiency | ≥100% |
4. Optical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 360degree |
| 3 | Luminous Flux | 3000Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4. Physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP68 |
| 3 | N.W | 0.8g |
| 4 | Length | 297mm |
| 5 | Width | 71mm |
| 6 | Height | 46mm |
Product drawing
:

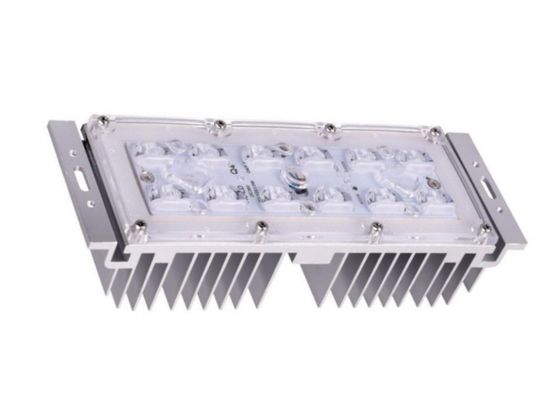

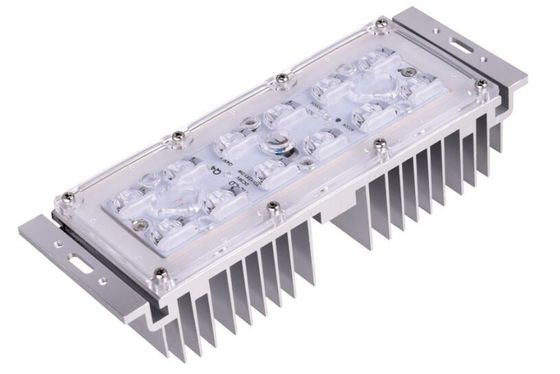

Product Picture :
Age test :
About Us:
Superolux is engaged in producing all kinds of indoor and outdoor LED lighting products
epscially for the industrial LED lighting and commercial LED lighting
1.with Stong R& D team ,every year , we design 10% new production every year . in each year ,
we spent 20% turn overs for production designing ,researching , in order to make professional
production for clients , we cooperated with professional test lab such as TUV ,SGS .etc .
2 .with professional sales team , the annual sales increased 10%-15% each year .
3. with reliable after sales team , all issue about after sales has been handle in first time .
Thanks for reviewing informations above .
Inquires will be reponse in 2 hours after sending , expecting for your inquires
