Product Details:
Payment & Shipping Terms:
|
| Colour: | 6000K/3000K/4500K | IP Rate: | IP65 |
|---|---|---|---|
| IK Rate: | IK10 | Votage: | 85-265 VAC |
| High Light: | led bulkhead wall light,external bulkhead lights |
||

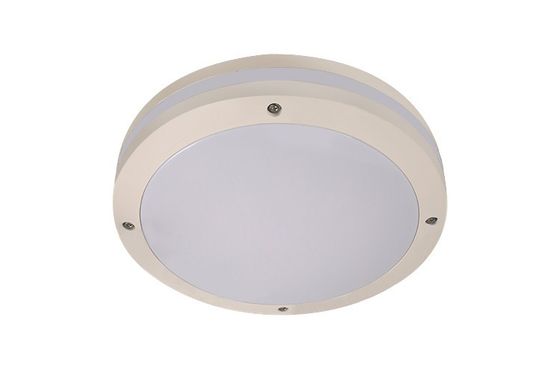

85-265V round LED Bulkhead Light , 300x300x80mm 50 Hz ip65 bulkhead light Waterproof
Features of Led bulkhead light:
1. impact resisitace with IK 10 Rate
2. energy saving .best replacement for tradtional bulkhead of holgen type .
3. long life span , low manitance cost , replacement parts can be exchange directly
4. Instant starting, no noise or flickering.
5. IP65 rating , can be used in moisture enviroment . Suitable for both indoor and outdoor
applications
ceiling mounted or wall mounted ,easy to be installed
suitable for schools and hospitals, , kitchen , bedroom ,shower room ,spas ,bathroom ,
commercial bulidings parks
Specfications :.
1. Power : 10W /15W/20W/30W
2. input votage : 85-285VAC
3. Lumen effiency : 80 Lm/ Watt
4. IP Rate : IP65
5. Warranty : 3 Years
Product Parameters :
| Datas | ||
| 1 | Input Voltage | 90-265V 50-60HZ |
| 2 | Input Current | 0.12A |
| 3 | Power | 20W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Lumen | 1600lm |
| 8 | Material | Die cast alumium |
| 9 | Cover Material | Milky PC |
| 10 | Screw Material | Rustless type |
| 11 | IP rate | IP65 |
| 12 | IK rate | IK10 |
| 13 | Warranty | 3 years |
| 14 | Colour | Cool white warm white |
| 15 | Finishing colour | grey/white /black |
| 16 | Other components | rustless screw /rubber ring |
| 17 | CRI | 80 |
| 18 | Working life | 50000hours |
| 19 | mount methods |
Wall/ceiling mount |
IP65 outdoor led ceiling light
Brieft introduction
Outdoor IP65 led ceiling light
3) instruction :
Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw
to fix the lamp base and lamp cover.Installation methods : with the tapping
screws installed two holes of base to specified location
4) Producing steps and factory pictures
Inspection services :
Our Quality control team will inspect the goods for every cargo
Shipping Services
make the booking form , contact the forwarder ,arrange the vessel , make telease release for the
container , provide all kind of documents for customers import works
Package informations
A. Netural carton ,Netural inner package
B Netural inner package , Customized carton with logo
C Customized inner package / Carton
with sea shipping ,we will provide standard pallet for export
Free samples services
we can also provide free samples for the products ,but the clients need to pay the freight cost
Attentions :
1. For all inquiries , please always send our specific questioins with the exact shape .power and other requirements
2. our delivery time start from the date when we get the downpayment
3. the addtional cost need to be paid if the clients want to make any other changes from the standard products
4. to work easily , our MOQ is 1 pcs
About OEM
OEM is acceptable for us
1. we need the specific requirements for the OEM projects
inculsive OEM agreement also can be signed ,but we will have requirements for the order qty
2. OEM is about the inner desining instead of the construct for the alumium body
Any inquires , Please contact us
Miss charlotte
info@superolux.com
whatsapp:13670232205
More about us , please check on : www.ledbulkheadlight.com
