Product Details:
Payment & Shipping Terms:
|
| Certification: | CE,ROHS, | Wattage: | 20W 30W |
|---|---|---|---|
| Application: | Outdoor Indoor | Color Temperature: | 2700-6500K |
| Dimension: | 280*180*83mm | LED Source: | Epistar |
| Input Voltage: | 85-265VAC | Warranty: | 3 Years |
| High Light: | external bulkhead lights,square bulkhead light |
||

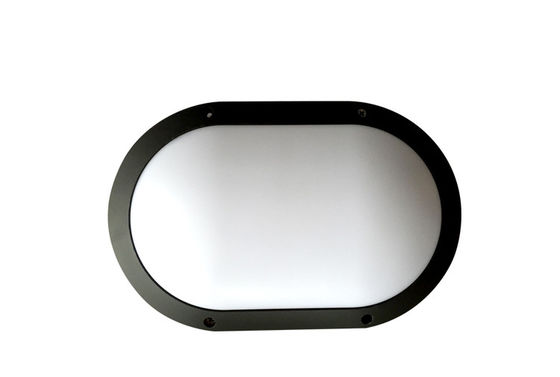

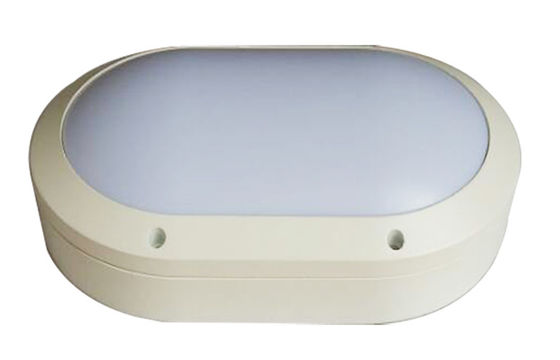

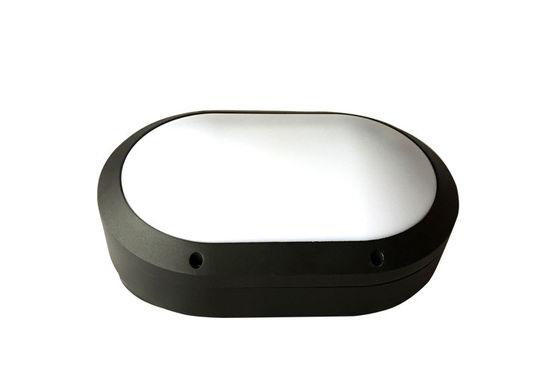

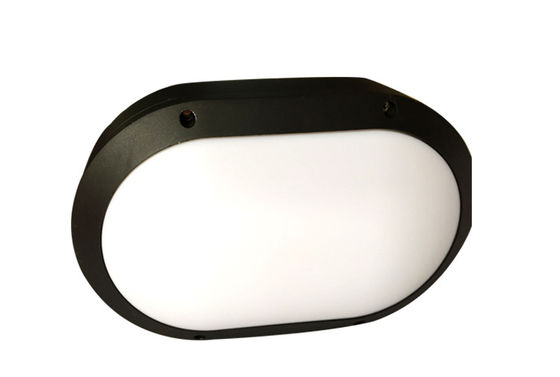

Descritpion :Constructed with Aluminum housing . The Oval LED bulkhead light is produced by superolux
lighting is impact resistance IK10 ,can be used both indoor and outdoor .it's a perfect lumaries solution for wet
,moisture ,frog conditions with IP65 rating . The Oval led bulkhead light providse 1600lumen and nice visual
experiences with white /black/grey housings .
20W Oval led bulkead light specfications :
| Model | SP-MLG020W | ||
| Input Voltage | AC100-277VAC 50/60Hz | ||
| Dimension | 280*185*90mm | ||
| Lighting Source | Epistar/Cree/Samsung | ||
| Power Consumption | 20W | ||
| Color Temperature | WW(2800~3000K) | NW(4000~4500K) | CW(6000~6500K) |
| Luminosity | ≥1500 | ≥1550lm | >1600lm |
| CRI(Ra) | >80 | ||
| Material | Die Cast Aluminium housing | ||
| Work Temperature | -25℃～+45℃ | ||
| Cover Material | PC | ||
| GW | 1KG | ||
| NW | 0.9KG | ||
| IK rate | IK09 | ||
| Lifespan (LED) | ≥50,000hrs (950% Lumen Maintenance) | ||
| IP Rating | IP65 | ||
| Lumen Attenuation | <5% @ 5,000hrs | ||
| Power Factor | >0.95 | ||
Oval led bulkhead light Features :
1. 280*185*90mm
2. Aluminum housing , IK09
3. IP65 rated .waterproofing
4. motion sensor verison and emergency version can be provided .
5. White/black/grey finishing colour ,Corrosion-proof
6. CE,Rohs ,SAA Listed
Mount Methods For Oval led bulkhead light
Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw
to fix the lamp base and lamp cover.Installation methods : with the tapping
screws installed two holes of base to specified location
Applications for Oval led bulkhead light
1. Bathroom ,toliet ,spa ,hotel ,lobby ,meeting room .
2, car park , garden
20W Oval led bulkhead light drawing :
Factory Tour :
Trade terms
1. Fob ,EXW .CIF
2. Payment : T/T ,Western Union , 30% paid for downpayment by TT ,balance should be paid before shipping .
3. Production lead time: 2-3 weeks
4. Sample can be delivered in 3-7 days.
5. Shipping freight are quoted under your requests.or the goods can be arranged by any
fowarder appointed by the clients
7. Discounts are offered based on large quantities.
