Product Details:
Payment & Shipping Terms:
|
| Material: | Die-cast Aluminum Housing | IP Rate: | IP65 |
|---|---|---|---|
| IK Rate: | IK 10 | Power: | 20W |
| Luminous Flux: | 1600 Lumen | Voltage: | 85-265VAC |
| CCT: | 3000K /4000K/6000K | ||
| Highlight: | bulkhead outdoor wall light,ip65 bulkhead light |
||

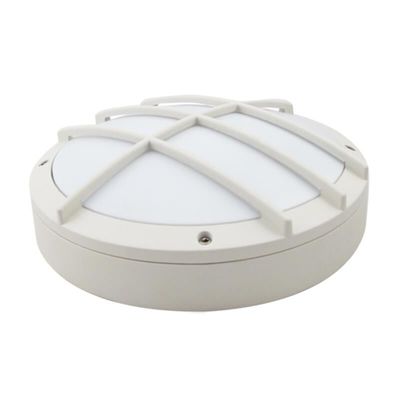

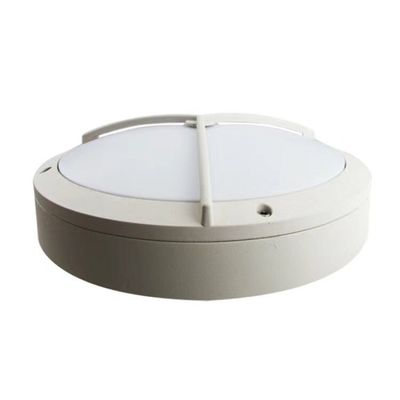

Description :superolux lighting produced series of bulkhead wall light with various power and shapes , one of the
best selling item is the round shape with 300*300*90 lumen . with Die-cast Aluminum houisng heat disspiate ,
IK10 , IP65 , 3 years warranty are offered .the item with grill is more protected for the luminaries E27 version
,standard led version , mostion sensor type ,emergency accu pack type both can be provided .
4 Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265V 42-63HZ |
| 2 | Input Current | 0.114A(230V) |
| 3 | Power | 20W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Luminous Efficiency | ≥85% |
4.
Opitical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 514cd |
| 3 | Luminous Flux | 1600Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 1.3Kg |
| 4 | Length | 300mm |
| 5 | Width | 300mm |
| 6 | Height | 80mm |
Product drawing :
Applications
