Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Corn Bulb | Power: | 80w 100w 120w 150W |
|---|---|---|---|
| LED Brand: | Epistar /Osram | Light Effciency: | 140lm/Watt |
| Voltage: | 90-277VAC | IP Rate: | IP20 |
| CRI: | >80 | PF: | >80 |
| Warranty: | 5 Years Warranty | ||
| High Light: | led corn bulb,led corn lamp |
||

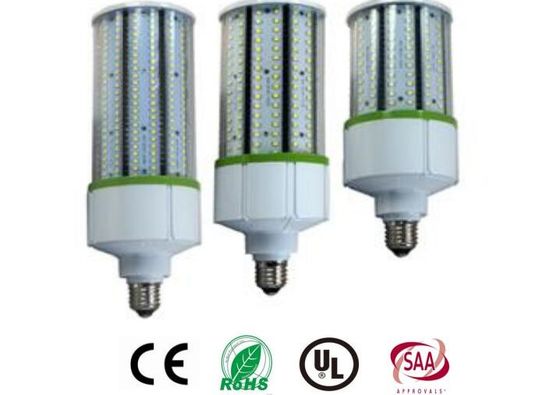

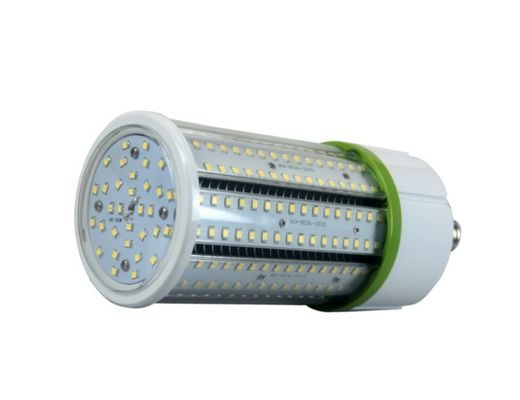

LED Corn bulb 140lm/Watt top brightness CRI>80 5 years warranty double fans Aluminium housing
LED Corn bulb is an item of LED light with 360 beam angle ,140lm/Watt lumen output , with top
bightness , can be widely used in indoor and outdoor applications . it's designed with unique heat
disspiation system ,dobule fans make sure the light span , 5 years warranty are offered , the
production is provided with CE/ Rohs/SAA certificate
LED Corn bulb specification
4 Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265V 42-63HZ |
| 2 | Input Current | 0.114A(230V) |
| 3 | Power | 120W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Luminous Efficiency | ≥140% |
4.Opitical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 360degree |
| 2 | Light efficiency | 140lm/Watt |
| 3 | Luminous Flux | 16800Lm |
| 4 | Color Rendering Index | ≥80Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP20 |
| 3 | N.W | 1.02kg |
| 4 | dimmeter | Φ125*294mm |
| 5 | Height | 294mm |
| 6 | LED QTY | 896 |
LED Corn bulb Features :
1. Aluminium heatsink , double fans , excellent heat dissipation
2. Famous Brand LED chip .Osram /Epistar
3. High luminous Flux . 140lm/Watt . top brightness
4. CRI>80 .PF>0.9
5. 360degree beam angle
6. 5 years warranty
7. can be widely used in wall pack light , high bays ,canopy light . garden light , street light as
lighting resournce
LED Corn bulb Applicatioins
1. Factory ,warehouse ,road
2. garden ,community , villa
3. car park , resturant , shopping mall
4 stadium ,park ,stores
More details :
Professional heatsink structure
1.Inner CTN size: 390*145*145mm
2.Net Weight:1255g
3.Qty/Mater CTN:12pcs
4.Master CTN:58*40*44.5cm
5.Gross weight:19.45kg
MOQ :1 pcs
Delivery time :
samples : 3-5 days
massive order : 2-3 weeks
warranty : 3-5 years , depends on the price that the customer prefer
Replacement policy
during the 3 years of warranty period , we offer free replacement of components , when the
products are not used on wrong voltage , and not destroyed by humen being efforts .
Quality Control steps :
1. from the raw materials , we have strict process of test the raw materials
2. On / Off test after assembing
