18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified

China 18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified supplier
18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified supplier 18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified supplier

Large Image :  18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified

Product Details:

Place of Origin: China
Brand Name: 1
Certification: CE,Rohs ,SAA
Model Number: Superolux

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: white package or OEM package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs/week
Contact Now
Detailed Product Description
Power: 150W Voltage: 90-277VAC
CCT: 6000K Size: 570*320*76mm
Warranty: 5 Years Warranty



18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified





150W LED Pole light meanwell driver led car park light for industrial district


Product Features

1.Super bright high power led as a lighting resource high efficiency,energy saving ,eco-firendly.

2.Aluminium alloy frame with high-thermal conductivity ,simple and nice

3.Intergrate heat disperison structure ,low lumens depreciation and long life span

4.Constant current driving power , the general avaliablity

5. Easy to install


150W LED Pole light paramters :



Model No SP-Pole150W
Power 10W Lighting Angle 120degree
Input Voltage AC100-277VAC LED Brand or Osram
Material Aluminum Power Factor 0.95
Driver Efficiency 120lm/Watt Working Temperature -20 - +65℃
Luminous Flux 19200lumen Storage Temperature -40 -+80℃
Color Temper 2800-6500K Protection Level IP65
CRI Ra>75 Size 570*320*76mm

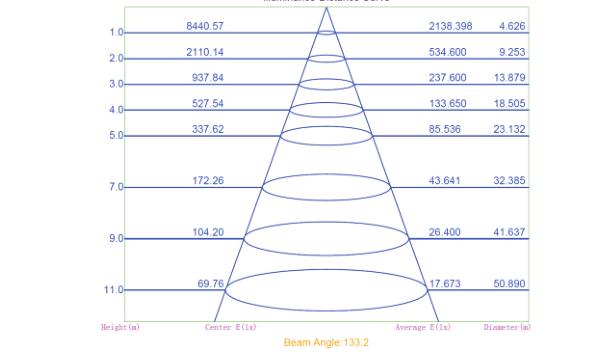

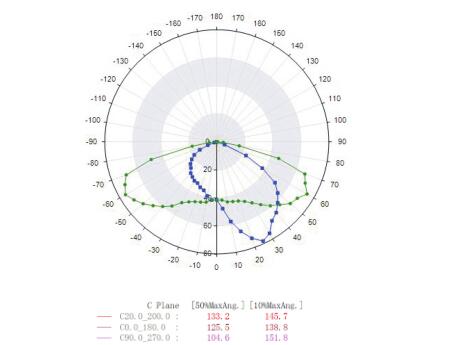

Light distribute Curve





                 18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified





18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified


 Installation instruction :





18000 Lumen Led Parking Lot Lights , Shoebox Style Led Area Light CE Rohs Certified
A.Drill holes on the square pole coressponding to the holes on the arms ,and use the bolt and nut

plate to fix the fixtures to the pole tightly

B.Connect the AC wire of the fixture amd tighten the waterproof gasket and cover plate on the

arm by the screws ,then power on .



Notes :

1.Avoid dropping of LED Street lamp, otherwise will be damaged;

2.Forbid to install the when power on. before power on ,please Make sure that wiring is correct

once installation finished

3.Ensure stable installation and correct connection to avoid short -circuit damage to the and

causing fire hazard;

4.Please do not stare at the for a long time when it is working to protect your eyes

5.Only professional personnel may dismantle and repair.

About OEM

OEM is acceptable for us

1. we need the specific requirements for the OEM projects

inculsive OEM agreement also can be signed ,but we will have requirements for the order qty

2. OEM is about the inner desining instead of the construct for the alumium body


About after sales services

1. Our sales team will keep tracking on the products's proformace after selling , we will always

wait for the customer's feedback after the clients get the products ,installation period


2. we have feedback investiagion after selling , we will keep the records from every customers

who cooperate with us

3 3 years warranty , we have extremly minium defective precentage ,but once is there is any

defective issue happen , please just contact us , we will offer the free replacement during the 3

years
