Product Details:
Payment & Shipping Terms:
|
| Product Name: | 150W LED Corn Light | Power: | 150W |
|---|---|---|---|
| Luminous Flux: | 18000lumen | CCT: | 5000K/6000K |
| Voltage: | 90-277VAC | LED Brand: | Epistar/Samsung |
| Warranty: | 5 Years Warranty | ||
| High Light: | led corn bulb,led corn lamp |
||

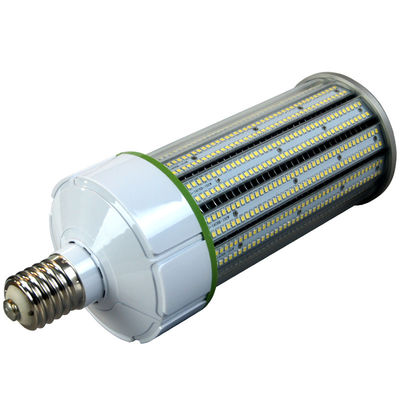

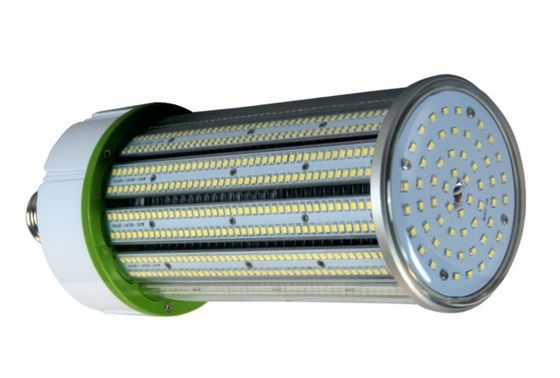

Waterproof 18000 Lumen Outdoor 150w Led Corn Lamp , Garden Corn Led Bulb Lighting
Description : 150W led corn light is a 360degree beam angle led bulb with E40 E39 E27 B22
Base , the whole lumen output is 18000lumen ,designed with epistar or samsung chip
140lm/Watt .the series of production provides 5 years warranty , CE,GS,SAA, UL listed
| Model No | SP-Corn -80W | ||
| Power | 80W | Lighting Angle | 180/360 degree |
| Input Voltage | AC100-277VAC | LED Brand | Epistar 0.5W |
| Material | Aluminum | Cover Material | PC Forsted/clearly |
| Driver Efficiency | 140lm/Watt | Working Temperature | -20 - +65℃ |
| Luminous Flux | 11200 | Storage Temperature | -40 -+80℃ |
| Color Temper | 2800-6500K | Protection Level | IP20 |
| CRI | Ra>75 | Size | Φ93*277mm |
| Power | LED QTY | Luminous Flux | Size |
| 30w | 224 | 4200lm | Φ93*221mm |
| 40w | 288 | 5600lm | Φ93*253mm |
| 60W | 416 | 8400lm | Φ93*277mm |
| 80W | 560 | 11200lm | Φ125*259mm |
| 120W | 819 | 16800lm | Φ125*294mm |
| 150W | 1046 | 21000lm | Φ125*324mm |
Product Features :
Installation instruction
Please turn off power before installation.
·Pay attention to the voltage before using,after connectiong the power line, please make sure the
wiring section is insulated.
·Make sure remove or bypass the ballast in the fixture before installation the corn light.
·Suitable for wet location.
·Suitable for enclosed fixtures.
·Do not use with dimmers.
·Do not press LED surface.
·
Do not take apart the product or replace mechanical and electronic components.
·Do not stare at the strong light for a long time as it may cause injury to eyes.
·If any doubt about the installation or use of this product, consult a competent electrician or
technician.
Package informations :
1.Inner CTN size: 390*145*145mm
2.Net Weight:1255g
3.Qty/Mater CTN:12pcs
4.Master CTN:58*40*44.5cm
5.Gross weight:19.45kg
150W LED Corn light drawing
FAQ :
1. How about our after sales services ?
we offer 3 years warranty for the bulkhead light series , any quality happened during the period ,
please just contact with the sales person ,we will take all responsilties to offer replacement both
for light sources or driver parts .
2. do we only sell the whole fixture ?
No , to work easily , we mainly sell the whole light fixture ,but still offer the components such light
the housings .
3. any other colour can be choosed except white/grey /black ?
yes , except the mentioned colours , we can also print the housing accoding to customer
requirements , just need the client send us a specfic colour rating .
4. do we accept payment of L/C ?
Yes .
5 does OEM or ODM accept?
Yes ,in this case ,we need the drawing or designing from clients side .
