Product Details:
Payment & Shipping Terms:
|
Product Name: | Outdoor LED Wall Light | IP Rate: | IP65 |
---|---|---|---|
IK Rate: | IK10 | Power: | 20W |
Luminous Flux: | 1600lumen | Voltage: | 85-265VAC |
CCT: | 6000K | Warranty: | 3 Years Warranty |
High Light: | led wall pack light,outside wall mounted lights |

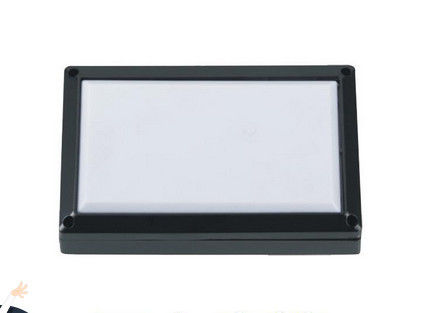

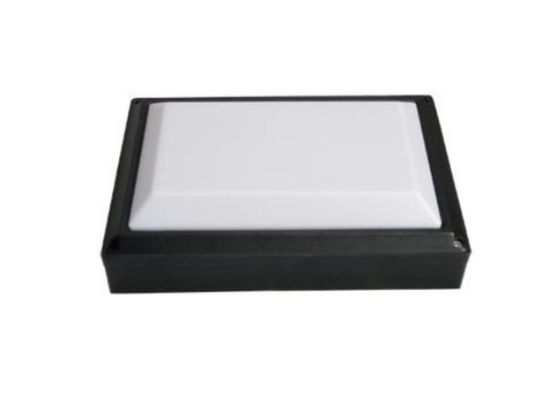

6 6000K 20w Outdoor Led Wall Light , Rectangle IP65 85-265v Car Park Lighting
Product review
1. Professional l design suitable for Outdoor led Lighting decoration
2. saving energy, enviromental firendly , watts and size are various
3. Lighting colour and finishing colour are various
2) Product advantages
1. suitable for indoor applications with IP65 rating
2. IK 10 ,impact-resistance
3. high brightness of light resource
4. avliable for different finishing housing
5. fast delivery , 2 weeks after order confirmation
1.,Electricity Parameters:
NO | Items | Parameters |
1 | Input Voltage | 90-265V 42-63HZ |
2 | Input Current | 0.114A(230V) |
3 | Power | 20W |
4 | Output Voltage | 30V |
5 | Output Current | 0.67A |
6 | Power Factor | >0.9PF |
7 | Luminous Efficiency | ≥80% |
4.
2,Optical Parameters:
NO | Items | Parameters |
1 | Beam angel (H,V) | 115° |
2 | Peak Light Intensity | 514cd |
3 | Luminous Flux | 1600Lm |
4 | Color Rendering Index | ≥70Ra |
5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4.
3,Physical Parameters:
NO | Items | Parameters |
1 | Working temperature | -40°— 60° |
2 | IP range | IP65 |
3 | N.W | 1.1Kg |
4 | Length | 275mm |
5 | Width | 180mm |
6 | Height | 75mm |
1,Take 2pcs 5*80mm screw to fix the lamp to the wall, take 2pcs 5*20mm screw to fix the lamp
base and lamp cover.
2,Installation methods : with the tapping screws installed two holes of base to specified
location( two holes are on the diagonal of base ).
.3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion
bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over .
see the picture :
Package informations
Product Features :
1. Die-casting Aluminium body
2. Power painting or Oil painting
3. Various for light colour and inner colour
3. PC housing
5. Voltage:12V24V/48V DC 85-265VAC
6. IP65 .moistureproof light
Factor Tour :
Trade terms
1, Trade term:EXW,FOB,CIF
2, MOQ:1pcs
3, payment :T/T WU ,paypal ,L/C
4, free sample : freight need to be paid
5, Fedex UPS Fedex TNT for sample order ,bulk order by sea shipping
6, Payment:T/T,Western Union,L/C,Paypal.
7. Payment terms : 30% downpayment 70% blanace before shipping
8, Shipment:ocean or air transportation,international express
