Product Details:
Payment & Shipping Terms:
|
Product Name: | Outdoor LED Ceiling Light | Voltage: | 85-265VAC |
---|---|---|---|
Power: | 10W | CCT: | 6000K |
IP Rate: | IP65 | IK Rate: | IK10 |
Luminous Flux: | 800lumen | Warranty: | 3 Years Warranty |
High Light: | ceiling mounted led lights,outside wall mounted lights |

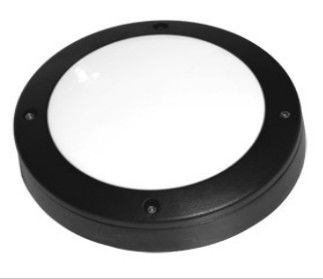

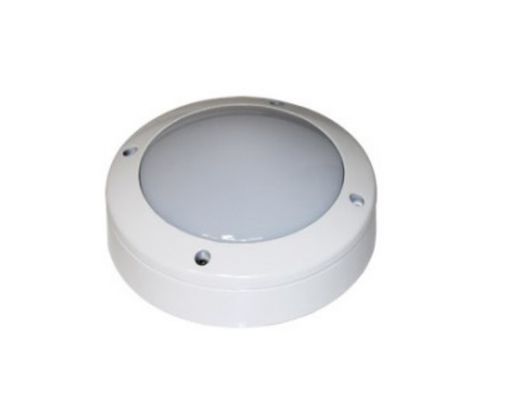

10W 800 lumen IK10 IP65 white ceiling lights , outdoor wall lighting
Description :
The outdoor LED ceiling light is a series with IP65 waterproofing designing , the series is the
main production for superolux lighting , range from 10w-30w ,with various fininshing colour ,white
grey ,black, Die cast Aluminium housing ,suitable for both indoor and outdoor lighting , the
outdoor ceiling light is an ideal choice for villa ,bathroom ,spa ,car park ,etc ...
Features of Led bulkhead light:
1. impact resisitace with IK 10 Rate
2. energy saving .best replacement for tradtional bulkhead of holgen type .
3. long life span , low manitance cost , replacement parts can be exchange directly
4. Instant starting, no noise or flickering.
5. IP65 rating , can be used in moisture enviroment . Suitable for both indoor and outdoor
Specfications :.
1. Power : 10W /15W/20W/30W
2. input votage : 85-285VAC
3. Lumen effiency : 80 Lm/ Watt
4. IP Rate : IP65
5. Warranty : 3 Years
4.
Electricity Parameters:
NO | Items | Parameters |
1 | Input Voltage | 90-265VAC 47-63HZ |
2 | Input Current | 0.058A(230V) |
3 | Power | 10W |
4 | Output Voltage | 30V |
5 | Output Current | 0.34A |
6 | Power Factor | >0.9 |
7 | Luminous Efficiency | ≥85% |
4.
2 Optical Parameters:
NO | Items | Parameters |
1 | Beam angel (H,V) | 115° |
2 | Peak Light Intensity | 247cd |
3 | Luminous Flux | 800Lm |
4 | Color Rendering Index | ≥70Ra |
5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4
Physical Parameters:
NO | Items | Parameters |
1 | Working temperature | -40°— 60° |
2 | IP range | IP65 |
3 | N.W | 330g |
4 | Length | 145mm |
5 | Width | 145mm |
6 | Height | 65mm |
7. Att 1,Take 2pcs 5*80mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the lamp
base and .
2,Installation methods : with the tapping screws installed two holes of base to specified
location( two holes are on the diagonal of base ).
3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion
bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over .
see the picture :
Package informations
Applications
ceiling mounted or wall mounted ,easy to be installed
suitable for schools and hospitals, , kitchen , bedroom ,shower room ,spas ,bathroom ,
commercial bulidings parks
