Product Details:
Payment & Shipping Terms:
|
Product Name: | Bulkhead Wall Light | Mount Method: | Wall Mounted Surface Mounted |
---|---|---|---|
Power: | 10W | Luminous Flux: | 800lumen |
IP Rate: | IP65 | Voltage: | 85-265V |
Size: | 220*135*65 | ||
High Light: | bulkhead outdoor wall light,ip65 bulkhead light |

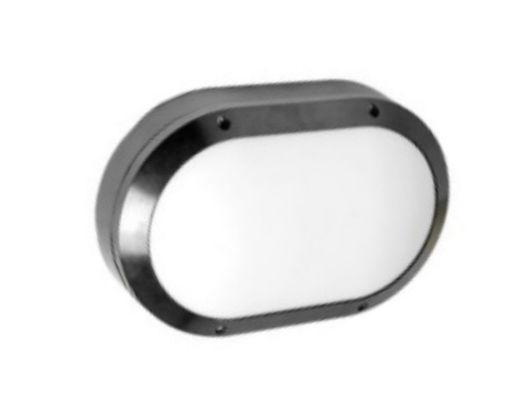

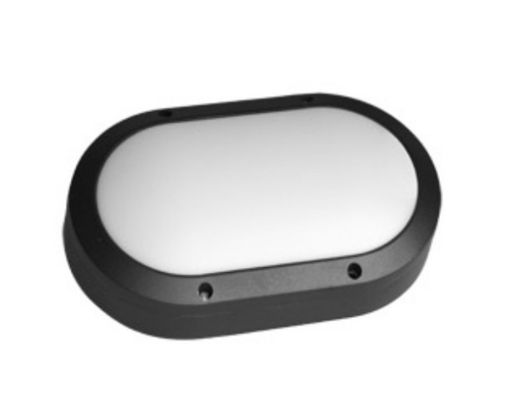

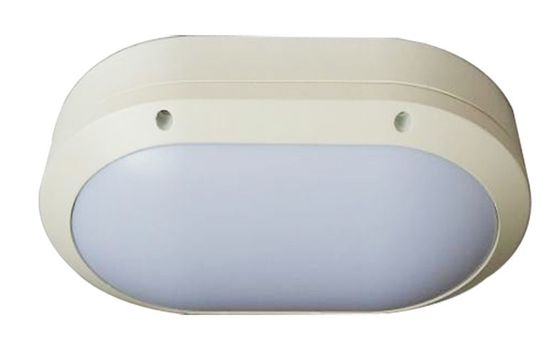

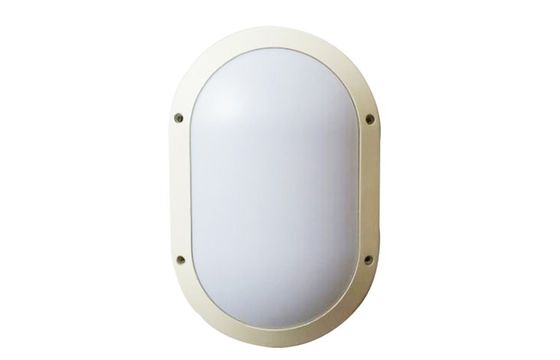

Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Description for Bulkhead wall light
The bulkhead wall light the main production in superolux lighting's production line , with designing
of IP65 . the series production can be widely used both indoor and outdoor . such as bathroom ,
steam room , villas near the sea etc ..
Competitive advantages for the bulkhead wall light
1. can be widely used in different applications for indoor and outdoor .
2. can be directly used in moisture enviroment such like bathroom ,spa ,kitchen ..etc.
3. unque apperances , round ,square ,oval shapes are aviable
4. beautiful apperances , white ,grey ,black finhsing colour ,powder painting or oil painting .
4. 3 years warranty are provided , after sales services are provided after selling
5 , easy to be installed ,surface mounted directly
4.
1 Electricity Parameters:
NO | Items | Parameters |
1 | Input Voltage | 90-265VAC 47-63HZ |
2 | Input Current | 0.058A(230V) |
3 | Power | 10W |
4 | Output Voltage | 30V |
5 | Output Current | 0.34A |
6 | Power Factor | >0.9 |
7 | Luminous Efficiency | ≥85% |
4.
,2. Optical Parameters:
NO | Items | Parameters |
1 | Beam angel (H,V) | 115° |
2 | Peak Light Intensity | 247cd |
3 | Luminous Flux | 800Lm |
4 | Color Rendering Index | ≥70Ra |
5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4.
,3. Physical Parameters:
NO | Items | Parameters |
1 | Working temperature | -40°— 60° |
2 | IP range | IP65 |
3 | N.W | 445g |
4 | Length | 220mm |
5 | Width | 135mm |
6 | Height | 65mm |
5,P
Product drawing
installation instructions
i
1,Take 2pcs 5*80mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the
lamp base and lamp cover.
.2,Installation methods : with the tapping screws installed two holes of base to specified
location( two holes are on the diagonal of base )
.
3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion
bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over .
see the picture :
Package informations :
Applications :
LED Bulkhead Light can widely used for different applications
1.Public Application -Air ports ,car park ,railway stations
2. Residential Lighting -Villa ,garden ,pool areas
3,Retail lighting -walkways, loading docks,and storage areas .
FAQ: can we print the customer's logo on the carton ?
1. Can we offer customized package with customers logo and company name
the inner package also can offer the colour package based on the desining
2. How about MOQ?
The MOQ is 1pcs
3. How fast the production can be delivery ?
it depends on the QTY , usually we need 2 to 3 weeks for the production
Installtion and maintaince :
Wall pack and wall mounted
low cost maintance
