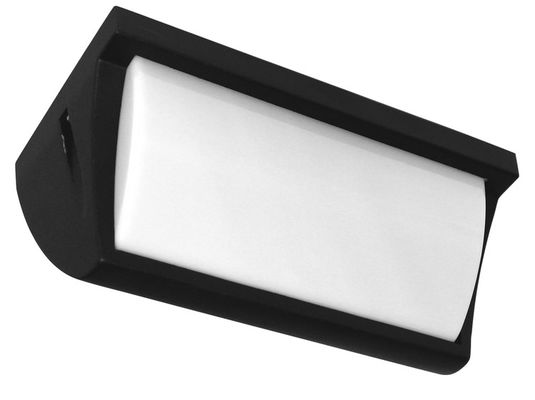

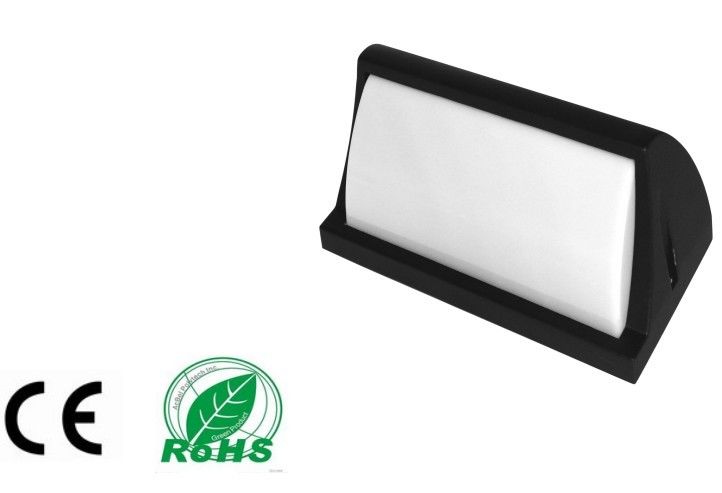

Outdoor LED Wall light 20W bulkhead light wall mounted 1600lumen IK10
Quick details :the 20W led wall light is with features of die cast Aluminium housing . IP65 rate ,
high leven impact resistance IK10 , downward beam angle , wall mounted/surface mounted . 3
years warranty . is an ideal choice for both indoor and outdoor applications
Product Specifications :
4.1,Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 85-265V 42-63HZ |
| 2 | Input Current | 0.114A(230V) |
| 3 | Power | 20W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Luminous Efficiency | ≥85% |
4.2,Optical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 514cd |
| 3 | Luminous Flux | 1600Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4.3,Physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 982g |
| 4 | Length | 250mm |
| 5 | Width | 125mm |
| 6 | Height | 110mm |
Product Features :
1.Die cast Aluminium housing
2. IP65 waterproof
3. Downward beam angle
4. white/grey /black finishing colour , powdering coating
5. Impact resistance ,IK10
6.80lm/Watt .1600lumen for 20W outdoor led wall light
installation instructions
1,Take 2pcs 5*40mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the lamp
base and lamp cover.
2,Installation methods : with the tapping screws installed two holes of base to specified
location( two holes are on the diagonal of base )
.
3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion
bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over .
Applications :
garden ,car park ,villa ,spa ,swimming pool ,
bathroom ,toilet ,suana . steam room
meeting room ,bedroom ,resturant
