200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen

China 200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen supplier
200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen supplier 200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen supplier

Large Image :  200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen

Product Details:

Place of Origin: China
Brand Name: OEM or superolux
Certification: CE,RoHs,SAA
Model Number: SP-HB-200w

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: neogotiable
Packaging Details: OEM package or standard export package
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 50000pcs/week
Contact Now
Detailed Product Description
Product Name: 200W LED High Bay Light Power: 200W
Luminous Flux: 18000lumen CCT: 6000K/3000K
Voltage: 85-265VAC Applications: Indoor And Outdoor
Warranty: 5 Years Warranty



200 W 85-265VAC led high bay shop lights high power outdoor UL driver









Description : 200W led high bay light is main item in superolux high bay light series .with



meanwell driver UL FCC Listed . high lumen output , IP65 rate , suitable for outdoor applications





200W led high bay light paramters





1 Electricity Parameters:



Code Items Parameters
1 Input voltage 90-305VAC 47-63Hz
2 Input Current 0.97A(230V)
3 Power 200W
4 Output voltage 30V
5 Output current 6.6A
6 Power Factor >0.9
7 Luminous Efficiency ≥90%


2,Optical Parameters:



Code Items Parameters
1 Beam angel(H,V) 120°/90°/45°
2 Peak intensity 8500cd/12000cd/16000cd
3 Luminous Flux 18000lm
4 Color Rendering Index ≥70Ra
5 Color Temperature 2800-3200K/4000-4500K/5500-6000K


3,Physical Parameters:



Code Items Parameters
1 working temperature -40℃- 60℃
2 IP IP65
3 N.W 8.5Kg/8.3Kg/8.6Kg
4 Length φ500mm /φ500mm /φ410mm
5 Width
6 Height 520mm/540mm/650mm







Light distrubute curve :





200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen



Product Features :





1.Good Color rendering index:Ra>80,the goods looks elegant.



2.With constant current constant voltage control circuit,applied voltage width(AC90V-



305V),overcome the light instability because of no using



3..WorkingTemperature: -40 ~ 55 degrees Celsius,IP65 Grade.



4. Application tunnel,buildings,factory,warehouse,largesupermarket,sculpture,stadiums,squares,



Working Lifespan:>50,000Hours



5.Good Color rendering index:Ra>80,the goods ,stylish designing



6. CE.Rohs.GS.SAA .UL listed





200W LED high bay light installation instruction :





.1 It is forbidden to squeeze the top of the lamp, so as not to damage the lamp shade.



.2 Yellow green line to protect the earth, Blue wire is “N”, Brown wire is “L”.The joint must be fixed



with silicon gel and protected by a heat-shrinkable tube in case water leaks in.



.3 When installation, hanging ring must be tight, in case lead to the lamp body fall off



.4 Because this product uses the heat pipe thermal conductivity, so it is strictly prohibited collision fal



.5.When installing a lampshade, hang up the screws on the composite aluminum plate



suspended within 2-3 mm



.6.Install the lamp shade on the aluminum plate, screw corresponding with hole , then clockwise



rotating lamp shade, Let the nut into the chimney hole and lock it



7.7 As LED high bay use heat pipe technology , lamp must be hang perpendicular to the ground,



deflection Angle is not greater than 15 degrees. the wire rope on heat sink is used to protect



lamp body, to prevent fall off. The rope must be connected to the fixed building can bearing, to



avoid lamp body fall off lead to goods damaged or personnel injury



200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen

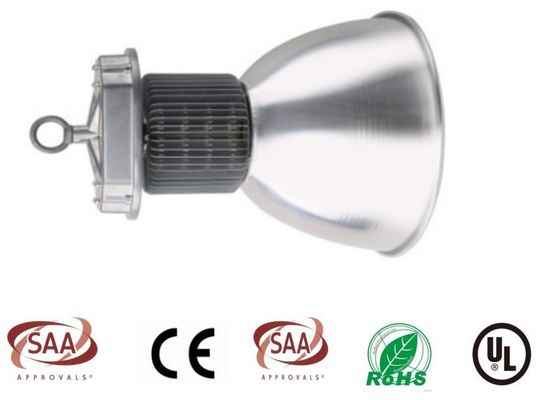

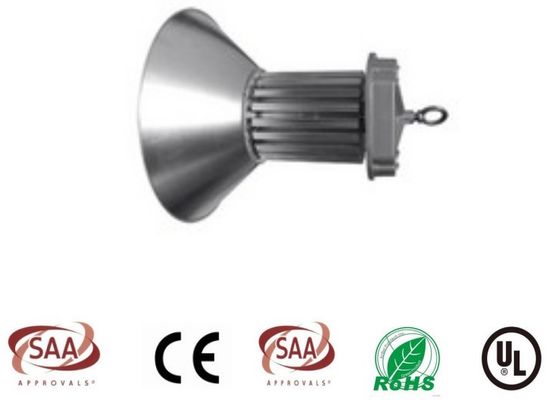

Product Picture :







200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen



Factory tour :200 W 85-265VAC UFO LED High Bay Light High Power Outdoor UL Driver 18000 Lumen





Thanks for reviewing the production informations

please don't hesitate to contact with us for any inquires !
