| Product Name: | LED Porch Light | Power: | 20W |
|---|---|---|---|
| Voltage: | 8-265VAC | CCT: | 6000K |
| Finhsing Color: | White /black/grey | IP Rate: | IP 65 |
| IK Rate: | IK 10 | ||
| High Light: | led bulkhead wall light,square bulkhead light |
||
6000K Outdoor Led Bulkhead Light With Motion Sensor / 85-265v Led Porch Light For Garden
Our main production is LED porch light , it's an series production can be provided with motion
sensor , suitable to be installed for the porch , the sensor can be setted with time ,brightness
Production materials : Die cast Aluminum housing
Voltage : 85-265VAC
Applications of LED porch light :
Porch , graden ,vialla ,hotel
car park ,spa ,bathroom ,toilet
swimming pool ,bedroom
LED Porch light paramters
4 Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265V 42-63HZ |
| 2 | Input Current | 0.114A(230V) |
| 3 | Power | 20W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Luminous Efficiency | ≥85% |
4.
Opitical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 514cd |
| 3 | Luminous Flux | 1600Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 1.3Kg |
| 4 | Length | 300mm |
| 5 | Width | 300mm |
| 6 | Height | 80mm |
Motion sensor detector area :
The sensor can be adjusted with time and brightness and lux
when there is no passagers pass from the porch , the light will be turn off
when there is someone walk from the porch , the light will be turn on
the brightness can be ajusted also . if don't need the light turn off 100% when there is no people
the brightness can be keep 50% or 30% as needed also
the relevanat requirements can be fixed accoding to the customer's needs

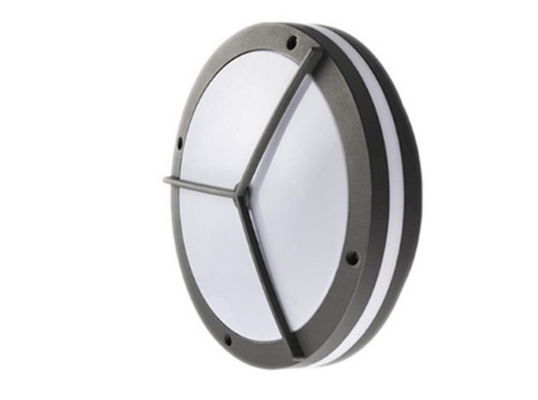

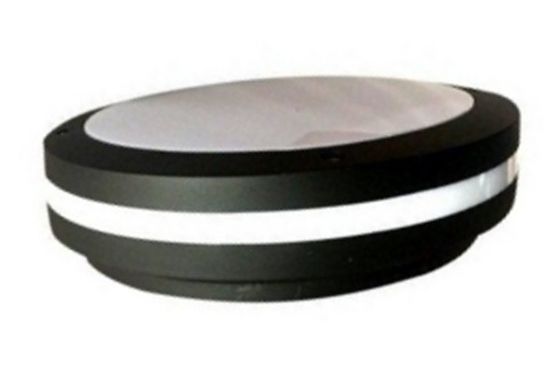

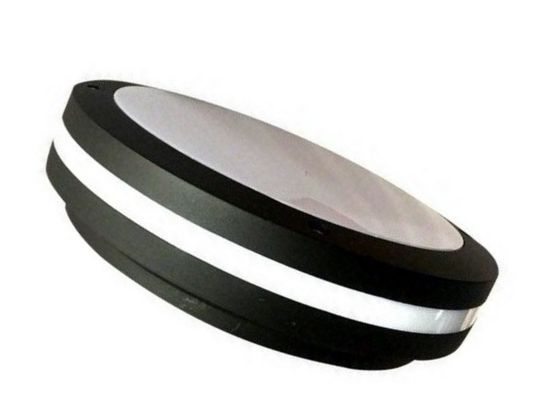

Production picture
Aging test for the production
About Us:
Superolux is engaged in producing all kinds of indoor and outdoor LED lighting products
epscially for the Outdoor /iindoor LED Ceiling light
1.with Stong R& D team ,every year , we design 10% new production every year . in each year ,
we spent 20% turn overs for production designing ,researching , in order to make professional
production for clients , we cooperated with professional test lab such as TUV ,SGS .etc .
2 .with professional sales team , the annual sales increased 10%-15% each year .
3. with reliable after sales team , all issue about after sales has been handle in first time .
Thanks for reviewing informations of the IP65 led ceiling light .
Inquires will be reponse in 2 hours after sending , looking forwade for your inquires
