Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED High Bay Light | Material: | Die Cast Aluminium Housing |
|---|---|---|---|
| LED Brand: | Cree | Driver Brand: | Meanwell |
| High Light: | led ufo high bay light,led high bay light |
||

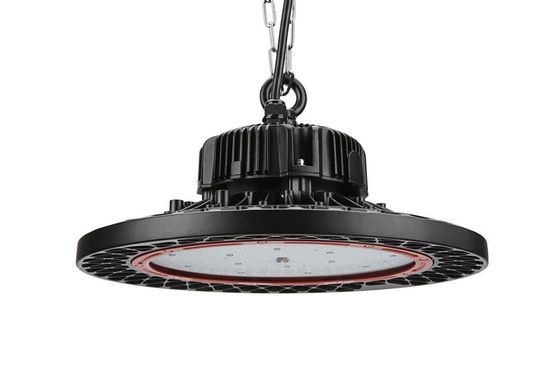

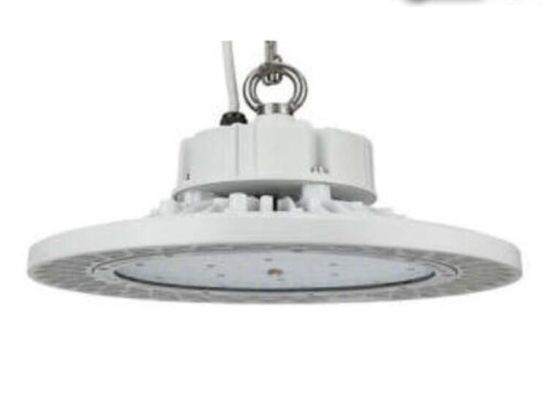

Cree chip MW driver led industrial lighting / led highbay lamp UL listed
Product Description
The LED UFO high bay is an ideal replacement of metal halide. the thermal management from
the fin type aluminum heatsink eanables the lumen efficacy to be higher .
LED high bay parameters :
| Code | Model | SP-UFO150W | |
| 1 | Input voltage | 90-305VAC 47-63Hz | |
| 2 | Input Current | 0.27A(230V) | |
| 3 | Power | 150W | |
| 4 | Output voltage | 36V | |
| 5 | Output current | 1.5A | |
| 6 | Power Factor | >0.95 | |
| 7 | Luminous Efficiency | ≥90% | |
| 8 | Beam Angle | 120Degree | |
| 9 | Luminous Flux | 19500lm | |
| 10 | CRI | 80 | |
| 10 | IP Rate | IK65 | |
| 11 | CCT | 2700-70000K | |
| 12 | LED Brand | /Cree | |
| 13 | LED QTY | 150 | |
| 14 | Driver Brand | Meanwell /Moso | |
| 15 | Material | Pure Aluminum | |
| 16 | Working Temperature | -40℃ - 60℃ | |
| 17 | Length | 315mm | |
| 18 | Width | 283mm | |
| 19 | Height | 130mm | |
| 20 | N.W | 3KG | |
| 21 | Warranty | 5 years | |
LED high bay light Features :
die cast Aluminium
3030 SMD
Fin type heat sink
5 years manufactuer's warranty
mean well power supply
Lumen output more than 130lm/Watt
5000hours
CUL,UL and DLC premium
Production details :
LED high bay advantages :
1.wide range power 80W .100W.120W .150W .200W
2 enegy saving , best replacement for metal halide lighting . suitable for all kinds of industrial
applicatioins
3.long working life, 50000hours life
4.alumininum housing ,excellent for heat disspiation
5.best components ,Cree chip ,MW driver
LED high bay light package information :
Producing line :
Common tecnnical datas :
Colour temperature 3000K to 5000K
CRI >75
Housing : AL and PC
Driver : Meanwell driver
input voltage :AC100-277V
Frequency :50-60HZ
Power factor>0.95
Beam angle :60/120 degree
Rated life: 50000hours
Applications :
Factory . grocery
workshop gymnasium
warehouse shipyard
gas station mining
FAQ:
1. The chip can be exchanged for other brand ?
yes , the corn light standard production is samsung ,but if the client need other brand , can
provide as well
2 dimmable versions can be provided ?
dimmble or non-dimmable versions are optional
3.any special colour temperature corn lamp can be provided
yes , just need the client let us know the specific range they will need
4.OEM package is acceptable
yes , the customer's logo can be printed on the light body can be print on inner box ,master box
