Product Details:
Payment & Shipping Terms:
|
| Name: | 20W Led Ceiling Light | Power: | 20W |
|---|---|---|---|
| CCT: | 6000K | Voltage: | 85-265VAC |
| IP Rate: | IP 65 | IK Rate: | IK 10 |
| High Light: | surface mount led ceiling lights,outside wall mounted lights |
||

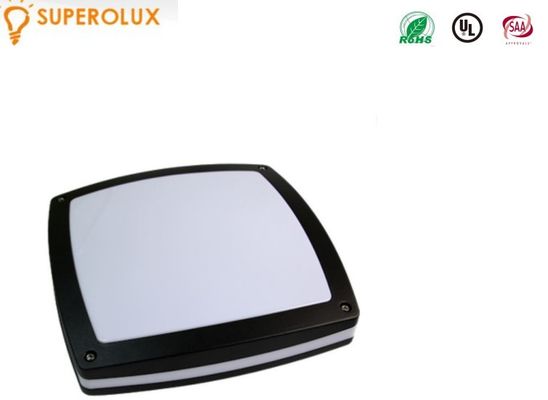

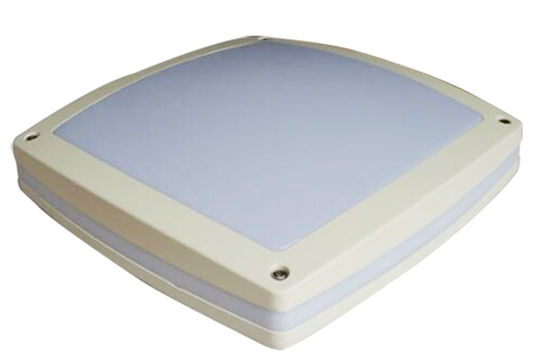

waterproof 1600 lumen IP65 Outdoor LED Ceiling Light black cover die cast aluminum
20W LED ceiling light introduction
the series of led ceiling light is designinged with IP65 Rate ,high power epistar chip . high
Luminous Flux , IK10 Rate , can be widely used both indoor and outdoor applications
20W LED ceiling light paramters :
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265V 42-63HZ |
| 2 | Input Current | 0.114A(230V) |
| 3 | Power | 20W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Luminous Efficiency | ≥85% |
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 514cd |
| 3 | Luminous Flux | 1600Lm |
| 4 | Color Rendering Index | ≥70 Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
20W LED ceiling light darwing :
LED ceiling lamp Applications :
Indoor : Bathroom ,toilet ,bedroom ,kitchen
Outdoor : outside viall wall , garden wall .etc...
LED ceiling lamp details
1. Main Technical Parameter:
2. Rated Output Power:10W/20w30w
3. Rated Input Voltage:85-265 Vac；
4. Rated Input Frequency Range:47～63Hz；
5. Power Factor:≥0.93；
6. Ra>75
7. Material: Pure Aluminum
8. Lamp Size 300x300x25mmmm
9. Rated Initial Luminous Flux: 1600 lm；
10. Rated Color Temperature:3000-6000K
11. LED chip: Epistar
12. Gross weight: 6 kg per pcs
(4.) Mount methods :
1. Hanging ,2. surface mount .3.wall mount
20W LED ceiling light Features :
1. can be widely used in different applications for indoor and outdoor .
2. can be directly used in moisture enviroment such like bathroom ,spa ,kitchen ..etc.
3. unque apperances , round ,square ,oval shapes are aviable
4. beautiful apperances , white ,grey ,black finhsing colour ,powder painting or oil painting .
4. 3 years warranty are provided , after sales services are provided after selling
5 , easy to be installed ,surface mounted directly
20W LED ceiling light advantages:
1. 50000hours life span , 5 years warranty
2. Waterproof . IP65 rate , can be widely used both indoor and outdoor applications
3. can be installed with motion sensor ,can be install with accu pack for emergency function
4. energy saving ,no emitting UV or IR , eco-firendly
Package informations :
Installation instruction for 20W LED ceiling light
Thanks for reiviewing the production informations . for any inquires please contact with us !
