Product Details:
Payment & Shipping Terms:
|
| Power: | 50W | CCT: | 2700-6000K |
|---|---|---|---|
| Certificate: | CE/Rohs | IP Rate: | IP65 |
| High Light: | led industrial flood lights,industrial outdoor led flood lights |
||

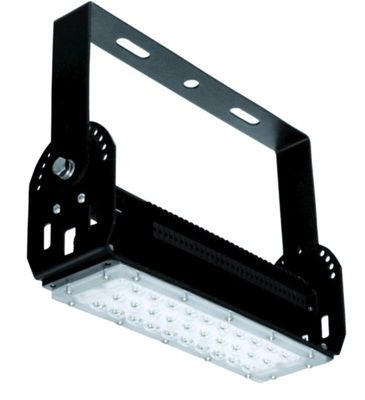

High lumen 50w industrial flood lights outdoor for tunnel lighting , eco - friendly
1) Product specification
1. Main Technical Parameter:
2. Rated Output Power:50W
3. Rated Input Voltage:85-265 Vac；
4. Rated Input Frequency Range:47～63Hz；
5. Power Factor:≥0.93；
6. Ra>75
7. Material: Pure Aluminum
9. Rated Initial Luminous Flux: 5600 lm；
10. Rated Color Temperature:3000-6000K
11. LED chip: Cree
12. Gross weight: 6 kg per pcs
2) Product advantages
1. suitable for indoor applications with IP65 rating
2. IK 10 , impact-resistance
3. high brightness of light resource
4. avliable for different finishing housing
5. fast delivery , 2 weeks after order confirmation

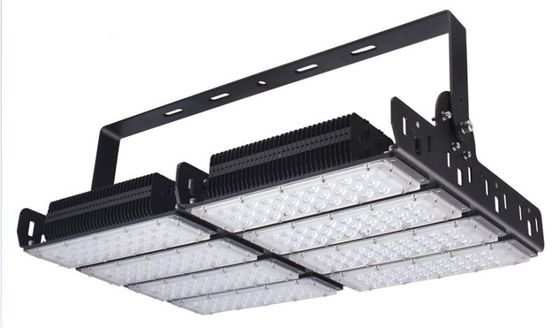

Other model avialble
| item Number | Power | Lumen |
| SP-S150W | 150W | 16500lumen |
| SP-S200W | 200W | 22000 Lumen |
| SP-S300W | 300W | 35600 Lumen |
| SP-S400 | 400W | 45600 Lumen |
| Code | Model | SP-S50W | |
| 1 | Input voltage | 90-305VAC 47-63Hz | |
| 2 | Input Current | 0.27A(230V) | |
| 3 | Power | 50W | |
| 4 | Output voltage | 36V | |
| 5 | Output current | 1.5A | |
| 6 | Power Factor | >0.95 | |
| 7 | Luminous Efficiency | ≥90% | |
| 8 | Beam Angle | 90degree /78x132degree | |
| 9 | Luminous Flux | 5360lm | |
| 10 | CRI | 80 | |
| 10 | IP Rate | IK65 | |
| 11 | CCT | 2700-70000K | |
| 12 | LED Brand | /Cree | |
| 13 | LED QTY | 48 | |
| 14 | Driver Brand | Meanwell /Moso | |
| 15 | Material | Pure Aluminum | |
| 16 | Working Temperature | -40℃ - 60℃ | |
| 17 | Length | 315mm | |
| 18 | Width | 130mm | |
| 19 | Height | 95mm | |
| 20 | N.W | 3KG | |
| 21 | Warranty | 5 years | |
2. Product Advantage :
(1). Pure Aluminum housing , best heat disspiation for long life span
(2) Range from 10w-60w
(3) Cree chip , Moso Driver , 5 years warranty
(4) Waterproofing rate with IP67
(5) Competitive price
(6) Can be widely use in all kinds of indoor and outdoor applications
3. Product Feature
(1) assmbled by high power led moudule
(2) Flexiable power by the qty of led module
(3) professional optical lens
(4) stable quality proformence
Maintenance:
A.Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit, especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.
B As there is high voltage circuit inside the product, during maintenance pls don’t dissemble orhand touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.
3. Product Piture
