Product Details:
Payment & Shipping Terms:
|
| Power: | 36w | Voltage: | 85-265V |
|---|---|---|---|
| IP Rate: | IP44 | CCT: | 3000K/6000K |
| Luminous Flux: | 5040lm | ||
| High Light: | led recessed ceiling panel lights,round led panel light |
||

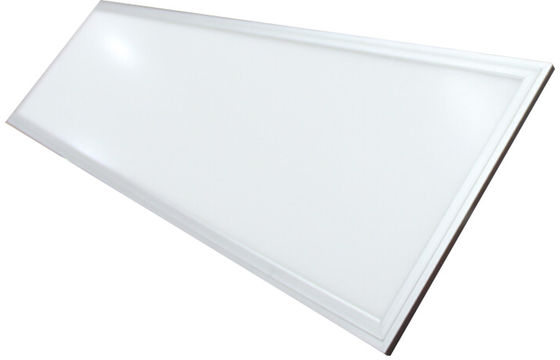

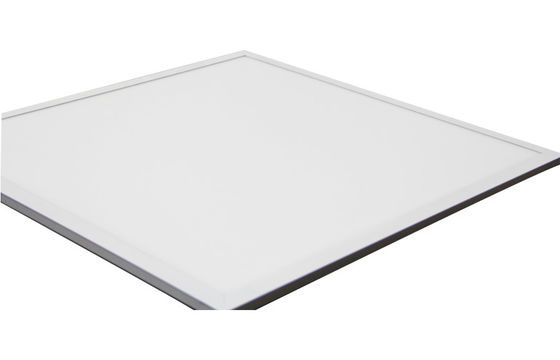

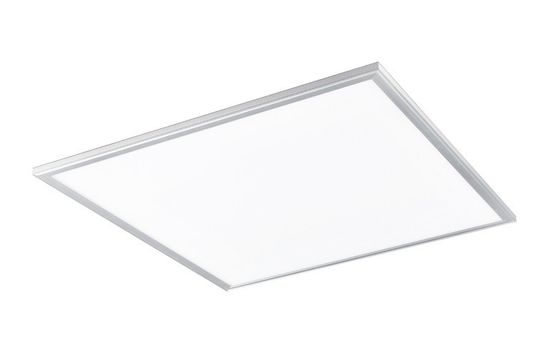

600x600 Recessed LED Panel Light surface mounted , indoor office led lighting 6000K
A) Ultra thin design, 13mm in thickness.
B) Superior raw material.
C) Dimmable optional.
D) High quality light source.
E) Leading heat sink design, four light emission instead of backlight emission.
F) Wide range voltage input.
G) NO UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass.
H) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,
worldwide application.
I) Low energy consumption, saves 60% power comparing conventional light
J) 5 years lifespan (LED), 10 times more than traditional lamp.
K) Be equipped with short circuit, open circuit, lighting stroke, power surge, overcurrent,
over-voltage, overheat etc. protection circuit.
L) Built-in high efficiency constant current driver, Wide Voltage AC100-240V 50/60Hz input,
worldwide application.
M) Easy to install, a perfect replacement for traditional fluorescent tube.
N) 5 years lifespan or > 50,000hrs (LED), 10 times more than traditional fluorescent tube.
O) Light diffusion lampshade or transparent lampshade, by customized.
Product advantages
| Model | SP-PL40-6060 | ||
| Input Voltage | AC90-264V 50/60Hz | ||
| Dimension | L597*W597*T13mm | ||
| Lighting Source | 96pcs5630 | ||
| Power Consumption | 36W | ||
| Color Temperature | WW(2800~3300K) | NW(4000~4500K) | CW(6000~6500K) |
| Luminosity | ≥3200lm | ≥3300lm | ≥3400lm |
| CRI(Ra) | >75 | ||
| Beam Angle | 180° | ||
| Work Temperature | -25℃～+45℃ | ||
| Material | Alu+PMMA | ||
| GW | 5.2kg | ||
| NW | 4.5kg | ||
| Cap ends | / | ||
| Lifespan (LED) | ≥50,000hrs (70% Lumen Maintenance) | ||
| IP Rating | IP50 | ||
| Lumen Attenuation | <5% @ 5,000hrs | ||
| Packing Dimension | L710*W640*H34mm | ||
.
| Item | Name | Qty | Unit | Remark |
| 1 | 600*600 LED Panel Light | 1 | pc |
This packing list for panel light only. |
| 2 | User Manual | 1 | pc | |
| 3 | Driver | 1 | pc |
Product Size :
Maintenance:
A.
Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit, especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.
B As there is high voltage circuit inside the product, during maintenance pls don’t dissemble orhand touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.
Product Size :
LED panel lamp, first consideration that whether the panel light and the size of the ceiling corresponds
Payment and delivery terms
1. T/T Western Union . Paypal for sample orders
2. except L/C . the balance payment must to be paid before shipping
3 the delivery time counts start from the date we get the downpayment
Package details :
we offer standar export carton with netural package , for any requirement of OEM package .
please contact with our sales team accodingly
FQA:
1. Can you offer extra components for orders
yes , if the order is been confirmed , we can provide some extra components for your future replacment
2. can we print our logo on the carton
yes , please provide us the desgining of the logo , we will print on the export carton
