High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen

China High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen supplier
High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen supplier High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen supplier High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen supplier

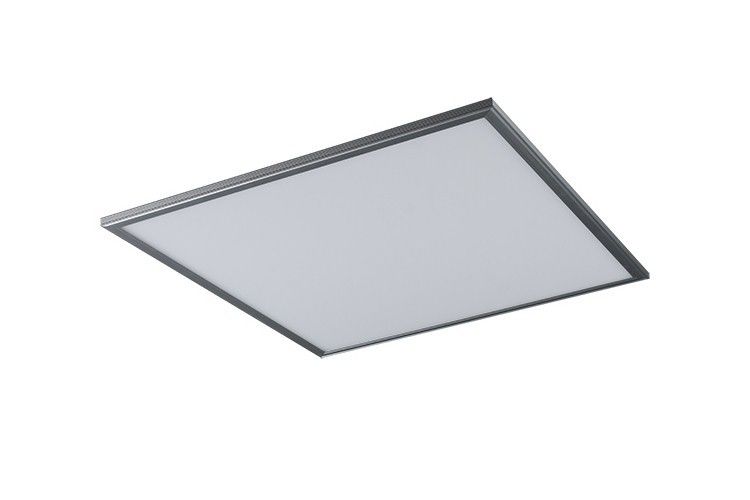

Large Image :  High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen

Product Details:

Place of Origin: China
Brand Name: Superolux
Model Number: SP-PLCE406060

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Netural package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T o
Supply Ability: 10Kpcs per month
Detailed Product Description
Certification: CE,ROHS Wattage: 42w
Application: Indoor Color Temperature: 3000K/6000K
Dimension: 600*600*13mm LED Source: Super Bright SMD 5630
Input Voltage: 85-265VAC Warranty: 3years
High Light:

led recessed ceiling panel lights

,

dimmable led panel light

High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen









Product advantages



1. super slim designing



2. convenient for installing , can be both installed by hanging and surface mounted



3. high light output effiency



4. low maitance .



5. fast delivery , 2 weeks after order confirmation





Model

PL-36W-6060

Input Voltage

AC90-264V 50/60Hz

Dimension

L597*W597*T13mm

Lighting Source

96pcs5630

Power Consumption

36W

Color Temperature

WW(2800~3300K)

NW(4000~4500K)

CW(6000~6500K)

Luminosity

≥3200lm

≥3300lm

≥3400lm

CRI(Ra)

>75

Beam Angle

180°

Work Temperature

-25℃~+45℃

Material

Alu+PMMA

GW

5.2kg

NW

4.5kg

Cap ends

/

Lifespan (LED)

≥50,000hrs  (70% Lumen Maintenance)

IP Rating

IP50

Lumen Attenuation

<5% @ 5,000hrs

Packing Dimension

L710*W640*H34mm

.



Item

Name

Qty

Unit

Remark

1

600*600 LED Panel Light

1

pc



This packing list for panel light only.

2

User Manual

1

pc

3

Driver

1

pc





Maintenance:



A.

Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit, especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.







B As there is high voltage circuit inside the product, during maintenance pls don’t dissemble orhand touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.









Product Size :High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen











Producing steps and aging pictures



High Power Cool White Recessed LED Panel Light L597 * W597 * T13mm 3200 Lumen





Payment and delivery terms





1. T/T Western Union . Paypal for sample orders



2. except L/C . the balance payment must to be paid before shipping



3 the delivery time counts start from the date we get the downpayment





Package details :



we offer standar export carton with netural package , for any requirement of OEM package .



please contact with our sales team accodingly
