High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm

China High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm supplier
High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm supplier High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm supplier

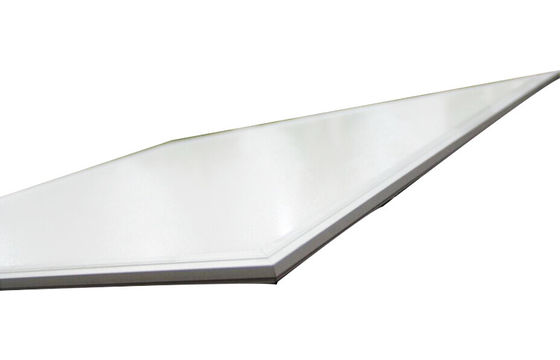

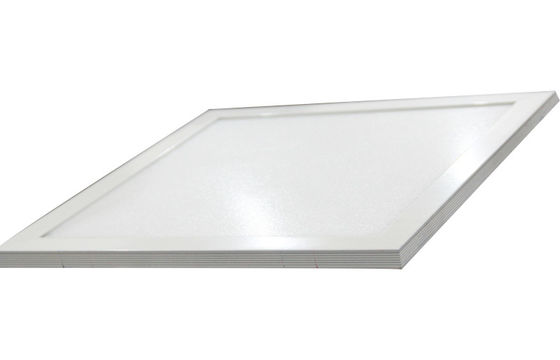

Large Image :  High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm

Product Details:

Place of Origin: China
Brand Name: Superolux
Certification: T/T
Model Number: SP-PLCE406060

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Netural package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T , L/C, T/T, Western Union
Supply Ability: 10Kpcs per month
Contact Now
Detailed Product Description
Wattage: 85-265V Application: Indoor
Color Temperature: 2700-7000K Dimension: 600*600*13mm
LED Source: Super Bright SMD 5630 Input Voltage: 85-265VAC
Certification: CE,ROHS Warranty: 3years





High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm





00x600mm  Led Ceiling Panel Lights



Product specification



I. Main Technical Parameter:



2. Rated Output Power:40W



3. Rated Input Voltage:85-265 Vac;



4. Rated Input Frequency Range:47~63Hz;



5. Power Factor:≥0.93;



6. Ra>75  Material: Pure Aluminum  Lamp Size: L1197*W297*T13MM



7. Rated Initial Luminous Flux: 3400 lm;



8. Rated Color Temperature:3000-6000K



7. LED chip:  96pcs SMD5630



8. Gross weight: 3.5 kg per pcs



9. Packing size: L1370*W200*H380MM (5pcs Inside)



Product advantages



1. super slim designing



2. convenient for installing , can be both installed by hanging and surface mounted



3. high light output effiency



4. low maitance .



5. fast delivery , 2 weeks after order confirmation



High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm





High Lumen Output Indoor Square LED Panel Light SMD PF 0.9 6000K Thick 11mm

.



Maintenance:



Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit,



especially in absence of necessary equipment, avoiding extending the damage or breaking down the important



components.





As there is high voltage circuit inside the product, during maintenance pls don’t dissemble orhand touch the PCB



under power - on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials



when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board



when there is stain or dust.



Package size







       Model   Quantity/Box         NG       WG    Box Size
  SP-PLCE3060300  1pcs         2.5 kg       3kg   67×34×3.4cm
