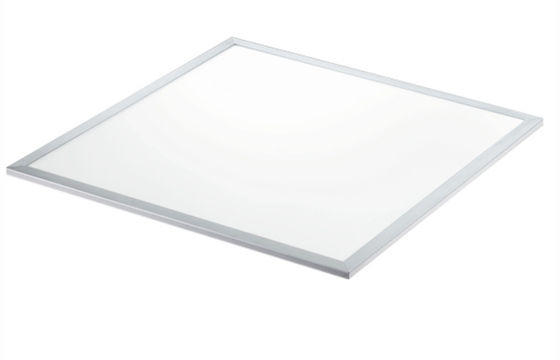

180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval

Good quality Outside Bulkhead Lights for sales
Good quality Outside Bulkhead Lights for sales
Charoltte ,the IP 65 ceiling lights are with nice unqiue designing . thanks for your support as always

—— Henry Hendriks

well received the new containers of the high bays , superolux is the realiable supplier

—— adam fraum

I'm Online Chat Now

180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval

China 180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval supplier
180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval supplier 180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval supplier 180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval supplier

Large Image :  180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval

Product Details:

Place of Origin: China
Brand Name: Superolux
Model Number: SP-PLCE4030120

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Netural package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T o
Supply Ability: 10Kpcs per month
Detailed Product Description
Certification: CE,ROHS Wattage: 25W 30W
Application: Indoor Color Temperature: 2700-7000K
Dimension: 300*1200*13mm LED Source: Super Bright SMD 5630
Input Voltage: 85-265VAC Warranty: 3years
High Light:

led recessed ceiling lights

,

ip65 led panel light





180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval





Model

PL-PL30 48

Input Voltage

AC90-264V 50/60Hz

Dimension

L597*W297*T11mm

Lighting Source

96pcs 5630

Power Consumption

48W

Color Temperature

WW(2800~3300K)

NW(4000~4500K)

CW(6000~6500K)

Luminosity

≥2450lm

≥2550lm

≥2580lm

CRI(Ra)

>75

Beam Angle

180°

Work Temperature

-25℃~+45℃

Material

Alu+PMMA

GW

2.6kg

NW

2.4kg

Cap ends

/

Lifespan (LED)

≥50,000hrs  (70% Lumen Maintenance)

IP Rating

IP50

Lumen Attenuation

<5% @ 5,000hrs

Packing Dimension

L670*W330*H34mm





180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval

.



Item

Name

Qty

Unit

Remark

1

600*600 LED Panel Light

1

pc



This packing list for panel light only.

2

User Manual

1

pc

3

Driver

1

pc





Maintenance:



Pls don’t repair or maintain the product under condition user lack of professional person or



knowledge for circuit, especially in absence of necessary equipment, avoiding extending the



damage or breaking down the important components.



As there is high voltage circuit inside the product, during maintenance pls don’t dissemble orhand



touch the PCB under power - on condition. There is isolation protection layer on circuit board, pls



don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use



plate washer water to clean the circuit board when there is stain or dust.



Producing steps and aging pictures



180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval





180° Waterproof Square LED Panel Light Inside 48W IP50 100 Lumen / Watt CE Approval



 Application Notes



1.Please make sure the working voltage is correct. Incorrect voltage may lead to damage of the



panel light.



2. Do not use this panel light in the outdoor environment, emergency exit facilities, or emergency



lighting facilities.



3. To avoid electric shock, after fitting the panel light and switch on the power, please do not



touch the metal area of the screw base.



4. Before open the package, please check for any damage on the package caused during



transportation. Please inform the supplier for replacement if any damage on the package is



found.



5. For product safety, please follow the instruction manual.



6. Before installation, please make sure the installation area can endure 10 times of the panel



light weight. panel light should be installed in the flat surface, an environment without vibration,



swing, and threat from fire.



7. During the panel light operation, the case may reach 55°C. Panel light should keep away from



temperature sensitive equipment. After switch off the power, please wait for 30 minutes, before



uninstall the light bulb.



8. This is a semiconductor lighting fixture, and it is very sensitive to the ambient temperature. If th



e ambient temperature is above 55°C, the life span of the panel light will be shortened. Hence



please keep the panel light away from the heat source. To maximize the life span of the panel



light, please maintain the working temperature at between -20°C to 25°C, and make sure the



working environment has good ventilation.



9. Please do not switch the power on and off continuously within a short period. This will lead to the damage of the lamp.



10. Under emergency situation, please do the following:


(1) Please check the input voltage.


(2) Please check the switch is functioning normally


(3) If the lamp still cannot light up, please inform the professionals for further examination.
