Product Details:
Payment & Shipping Terms:
|
| Certification: | CE,ROHS, | Wattage: | 20w 30w |
|---|---|---|---|
| Application: | Outdoor | Color Temperature: | 2700-7000K |
| Dimension: | 280*180*83mm | LED Source: | Epistar |
| Input Voltage: | 85-265VAC | Warranty: | 3years |
| High Light: | recessed bathroom ceiling lights,square led ceiling lights |
||

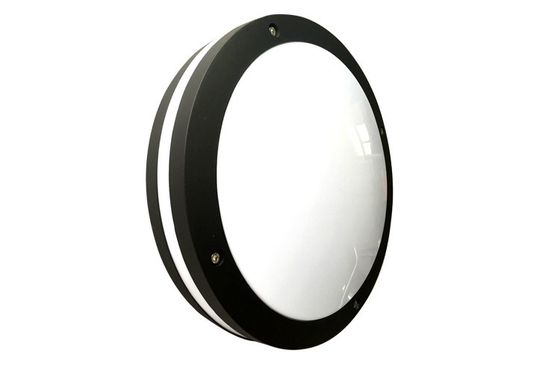

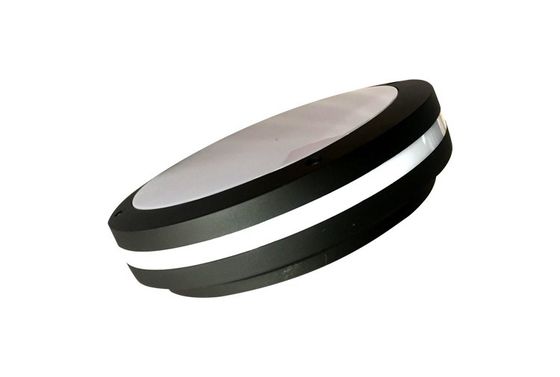

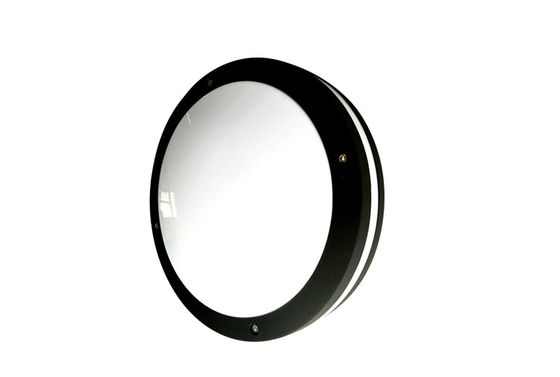

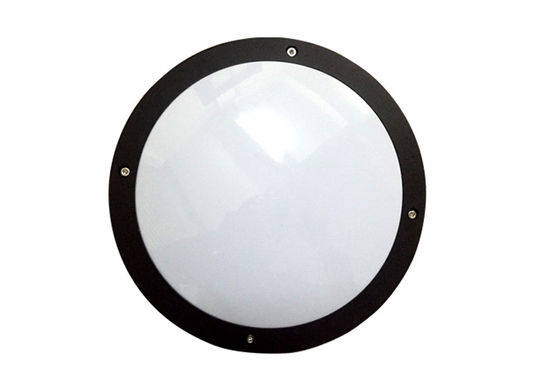

Grey / White / Black Corner Bulkhead Light Kitchen LED Ceiling Lights 47 - 63Hz
1) Product specification
1. Main Technical Parameter:
2. Rated Output Power:20W
3. Rated Input Voltage:85-265 Vac；
4. Rated Input Frequency Range:47～63Hz；
5. Power Factor:≥0.93；
6. Ra>75
7. Material: Pure Aluminum
8. Lamp Size:280*180*83mmmm
9. Rated Initial Luminous Flux: 1600 lm；
10. Rated Color Temperature:3000-6000K
11. LED chip: Epistar
12. Gross weight: 6 kg per pcs
2) Product advantages
1. suitable for indoor applications with IP65 rating
2. IK 10 ,impact-resistance
3. high brightness of light resource
4. avliable for different finishing housing
5. fast delivery , 2 weeks after order confirmation
.
specification:
| Model Number | SP-MLCG300-04 |
| Brand | Superolux |
| LED Light Source | SMD Epistar chip |
| Dimesion | 300x300x25 |
| LED Luminous Efficiency | 80lm/w |
| Lamp Total Power | 20WW |
| Lumen | 1600 lumen |
| Finsihing Colour | Grey /Black /White |
| Color Rendering Index | Ra >80 |
| Color Temperature | warm white: 2800-3200 k |
| natural white: 4000-4500 k | |
| cool white:5500-6500 k | |
| Beam Angle | 120degree |
| Driver | dimmable /Non-dimmable |
| Input Voltage | AC100-240V |
| Frequency Range | 50/60 Hz |
| Power Factor | ≥0.90 |
| Total Harmonic Distortion(THD) | < 20% |
| -40°C--+80°C | |
| Working Tempeature | -40°C--+50°C; 10%-95%RH |
| Lifetime | > 50,000 hours |
| IK rate | IK10 |
| Lamp Body Material | Die cast aliuium |
| IP Rate | IP65 |
3) instruction :
Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw
to fix the lamp base and lamp cover.Installation methods : with the tapping
screws installed two holes of base to specified location
4) Producing steps and factory pictures
