Product Details:
Payment & Shipping Terms:
|
Certification: | CE,ROHS, | Wattage: | 20W 30W |
---|---|---|---|
Application: | Outdoor/indoor | Color Temperature: | 4500K |
Dimension: | 280*280*80mm | LED Source: | Cree |
Input Voltage: | 85-265VAC 12V 48V 24 V DC | Warranty: | 3years |
High Light: | exterior led wall lights,led wall pack light |

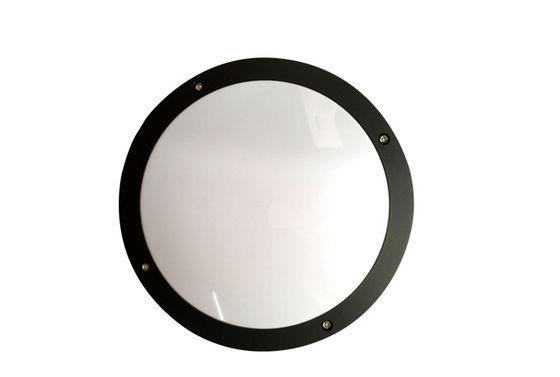

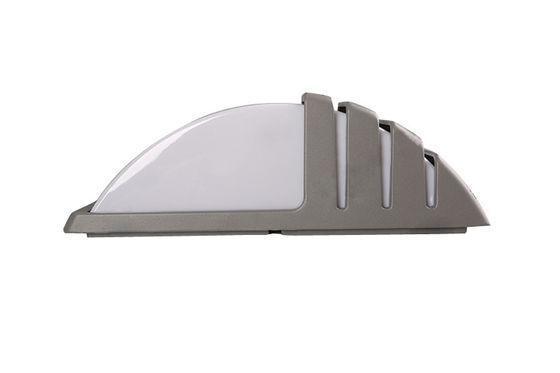

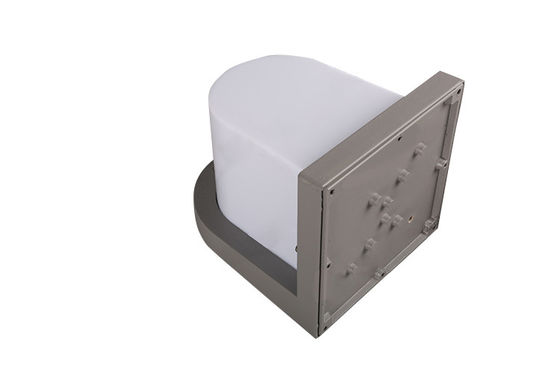

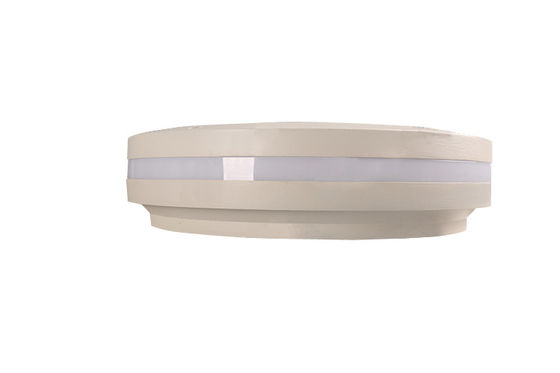

Surface Mount Outdoor LED Wall Light 4500K Villa Wall Pack LED Lights 85 - 265VAC
Model Avilable :
Model Number | Power | lumen |
SP-MLRG270-A10 | 10W | 800lumen |
SP-MLRG270A | 20W | 1600umen |
SP-MLVG280-A10 | 10W | 800lumen |
SP-MLRG300-A | 20W | 1600lumen |
SP-MLRG300-A30 | 30W | 2400lumen |
SP-MLCG300A | 20W | 1600 Lumen |
1. Main Technical Parameter:
2. Rated Output Power:20W
3. Rated Input Voltage:85-265 Vac;
4. Rated Input Frequency Range:47~63Hz;
5. Power Factor:≥0.93;
6. Ra>75
7. Material: Pure Aluminum
8. Lamp Size:280*180*83mmmm
9. Rated Initial Luminous Flux: 1600 lm;
10. Rated Color Temperature:3000-6000K
11. LED chip: Epistar
12. Gross weight: 6 kg per pcs
2) Product advantages
1. suitable for indoor applications with IP65 rating
2. IK 10 ,impact-resistance
3. high brightness of light resource
4. avliable for different finishing housing
5. fast delivery , 2 weeks after order confirmation
Motion Sensor informations
Item |
Name |
Qty |
Unit |
Remark |
1 |
20W LED bulkhead light |
1 |
pc |
This packing list for panel light only. |
2 |
User Manual |
1 |
pc |
|
3 |
Driver |
1 |
pc |
Mount methods :
Surface mount /Wall mount
Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw
to fix the lamp base and lamp cover.Installation methods : with the tapping
screws installed two holes of base to specified location
4) Producing steps and factory pictures
MOQ :1 pcs
Delivery time :
samples : 3-5 days
massive order : 2-3 weeks
warranty : 3-5 years , depends on the price that the customer prefer
Replacement policy
during the 3 years of warranty period , we offer free replacement of components , when the
products are not used on wrong voltage , and not destroyed by humen being efforts .
