Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver

China Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver supplier
Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver supplier Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver supplier Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver supplier Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver supplier

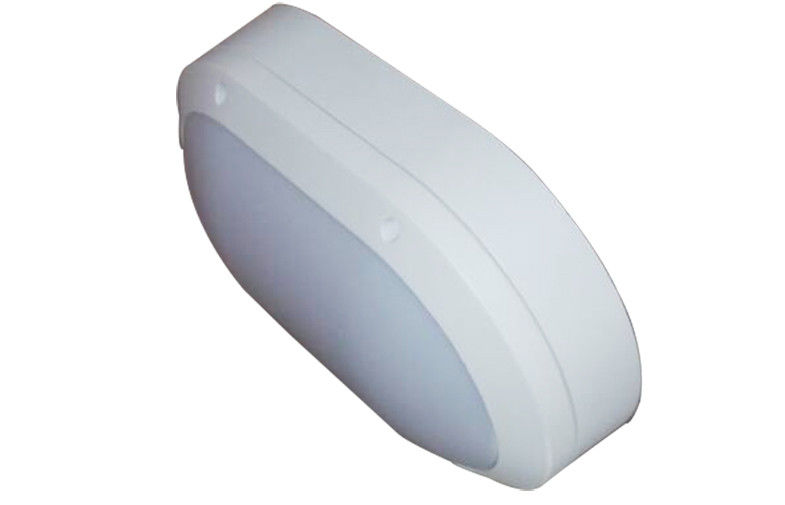

Large Image :  Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver

Product Details:

Place of Origin: China,Guangdong
Brand Name: Superolux
Certification: CE/Rohs
Model Number: SP-MLCG300-S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Neutral package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 10Kpcs per month
Contact Now
Detailed Product Description
Wattage: 20W 30W 40W Application: Outdoor/Indoor
Color Temperature: 4500K Dimension: 280*280*83mm
LED Source: Osram Input Voltage: 85-265V
Certification: CE,ROHS, Warranty: 5years





Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver





Quickily details :





Light source : LED



Light type :   Outdoor LED ceiling light



Install style : wall mounted /ceiling mounted



IP Rate       : IP65



Dimater     :  300



Light colour : Warm white/cool white/ Netural white




Product Parameters :







 Datas

     1

Input Voltage

90-265V 50-60HZ

     2

Input Current

0.12A

     3

Power

20W

     4

Output Voltage

30V

     5

Output Current

0.67A

     6

Power Factor

>0.9PF

     7

Lumen

1600lm









      8

 Material

  Die cast alumium

      9

 Cover Material

  Milky PC

     10

 Screw Material

  Rustless type

     11

  IP rate

   IP65

     12

  IK rate

   IK10

     13

   Warranty

  3 years









     14

 Colour

  Cool white  warm white

     15

 Finishing colour

  grey/white /black

     16

 Other components

  rustless screw /rubber ring

     17

  CRI

   80

     18

  Working life

   50000hours

     19

 mount methods

   Wall/ceiling mount









Product  Features .


1. suitable for all moisture applications such for bathroom,toilet

2. die cast alumium body ,high impact resisitance

3. IP65 rating

4 long working life



IP65 outdoor led ceiling light

Brieft introduction

Outdoor IP65 led ceiling light


3) instruction :

Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw

to fix the lamp base and lamp cover.Installation methods : with the tapping

screws installed two holes of base to specified location




4) Producing steps and factory pictures







Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver









Round / Square / Oval Outdoor LED Ceiling Light with SMD chip MW driver





Inspection services :


Our Quality control  team will inspect the goods for every cargo


Shipping Services


make the booking form , contact the forwarder ,arrange the vessel , make  telease release for the

container , provide all kind of documents for customers import works



Package informations


A. Netural carton ,Netural inner package

B  Netural inner package , Customized carton with logo

C  Customized inner package / Carton

with sea shipping ,we will provide standard pallet for export





Free samples services



 we can also provide free samples for the products ,but the clients need to pay the freight cost







Attentions :



1. For all inquiries , please always send our specific questioins with the exact shape .power and other requirements



2. our delivery time start from the date when we get the downpayment



3. the addtional cost need to be paid if the clients want to make any other changes from the standard products



4. to work easily , our MOQ is 1 pcs





About OEM



OEM is acceptable for us



1. we need the specific requirements for the OEM projects



inculsive OEM agreement also can be signed ,but we will have requirements for the order qty



2. OEM is about the inner desining instead of the construct for the alumium body
