Product Details:
Payment & Shipping Terms:
|
| Certification: | CE,ROHS, | Wattage: | 20W 30W |
|---|---|---|---|
| Application: | Outdoor/indoor | Color Temperature: | 2700-7000K |
| Dimension: | 300*30083mm | LED Source: | Epistar |
| Input Voltage: | 85-265VAC | Warranty: | 3years |
| High Light: | led bulkhead wall light,square bulkhead light |
||
Epistar LED Indoor Bulkhead Light 2700 - 7000K Ra 75 External Bulkhead Lights

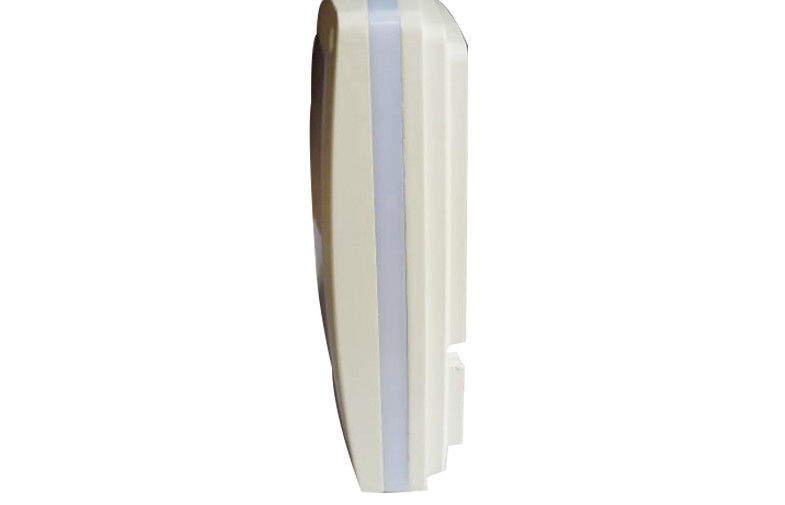

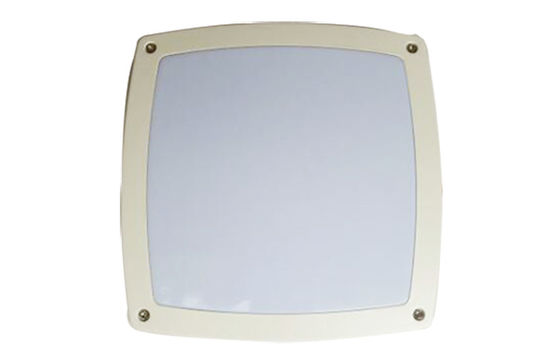

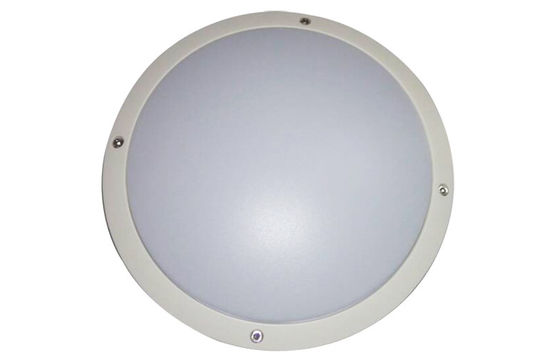

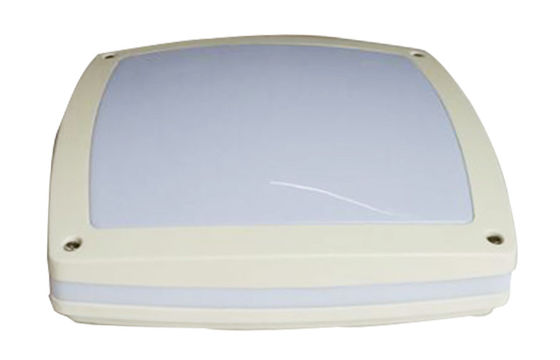

Product picture
1) Product specification
1. Main Technical Parameter:
2. Rated Output Power:20W
3. Rated Input Voltage:85-265 Vac；
4. Rated Input Frequency Range:47～63Hz；
5. Power Factor:≥0.93；
6. Ra>75
7. Material: Pure Aluminum
8. Lamp Size:280*180*83mmmm
9. Rated Initial Luminous Flux: 1600 lm；
10. Rated Color Temperature:3000-6000K
11. LED chip: Epistar
12. Gross weight: 6 kg per pcs
2) Product advantages
1. suitable for indoor applications with IP65 rating
2. IK 10 ,impact-resistance
3. high brightness of light resource
4. avliable for different finishing housing
5. fast delivery , 2 weeks after order confirmation
.
| Power | 20W | Beam Aangle | 120degree |
| Input Voltage | 12v/24V/48v | Working Life | 50000hours |
| PF | >0.9 | Working Temperature | -20-+45 |
| lumen | 1600 Lumen | Storage Temperature | -40+80 |
| Colour Tempature | 3000K/6000K | Material | Alumium |
| CRI | 80 | Cover mateiral | Milky PC |
| Warranty | 3 years | Efficiency | >90 |
3) instruction :
Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw
to fix the lamp base and lamp cover.Installation methods : with the tapping
screws installed two holes of base to specified location
4) Producing steps and factory pictures
Applications :
1. Kitchen ,spa ,bathroom ,toliet ,swimming pool
2. villa ,hotel .garden ,lobby
3. meeting room ,office ,factory
Mount methods :
Surface mount /Wall mount
Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw
to fix the lamp base and lamp cover.Installation methods : with the tapping
screws installed two holes of base to specified location
