Product Details:
Payment & Shipping Terms:
|
| Certification: | CE,ROHS, | Wattage: | 20W 30W |
|---|---|---|---|
| Application: | Outdoor | Color Temperature: | 2700-7000K |
| Dimension: | 280*180*83mm | LED Source: | Epistar |
| Input Voltage: | 85-265VAC | Warranty: | 3years |
| High Light: | external bulkhead lights,square bulkhead light |
||
Low Energy Interior / Outside LED Bulkhead Light 12v 24v 48v DC High Impact Resistance
Product advantages introduction :
1. Die cast alumium body
2. excellent heat dissipation
3. factory price ,competitive with discounts for large qty
3. 3 years warranty
4. suitable for all kinds of enviroments
5. Enviromental firendly , Long life span
| Parameters | ||
| 1 | Brand | Superolux |
| 2 | LED Brand | Epistar/Brideglux/Osram |
| 3 | Voltage | 12v/24v/48vDC or85V-265V AC |
| 4 | LED Quantity | 160 pcs |
| 5 | Driver brand | Meanwell or chinese type |
| 6 | Shape | Square /Round/Oval |
| 7 | Color | Cool /Neutal/Warm |
| 8 | Color Temperature | Warm white : 2700K-3500K |
| Cold White : 6000K-7500K | ||
| 9 | Material | Die cust Alumium |
| 10 | Cover material | Milky PC |
| 11 | Frequency | 50/60 HZ |
| 12 | Working Frequency | 50 ~ 60HZ |
| 13 | Working Temperature | -40 ~ 60 |
| 14 | Warranty | 3 years |
| 15 | IP Rate | IP65 |
LED Bulkhead Light IP65 Features:
1. Die-casting aluminum lamp body, excellent heat dissipation
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance, IK10 approval
4. rustiless steel socket head cap screws
5. Can be provied with sensor or without montion sensor
6. Available for emergency function, from 1 to 4 hours
7. Black / white / grey aluminum housing color available
8. Energy saving, not emitting UV and IR, no RF interference

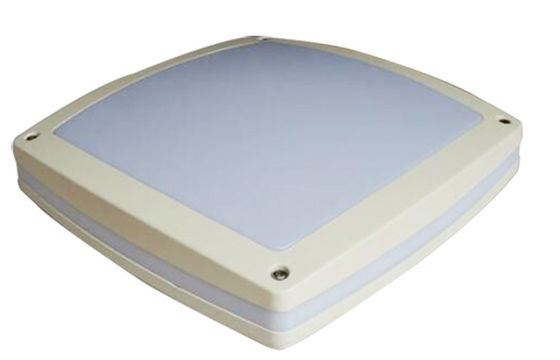

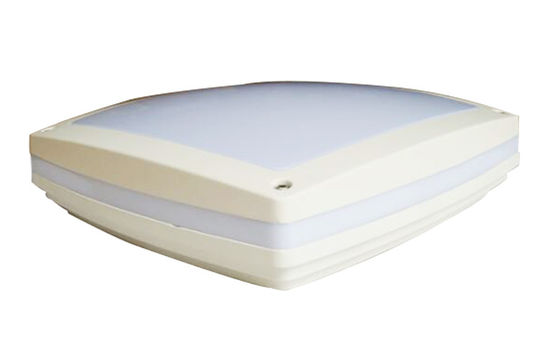

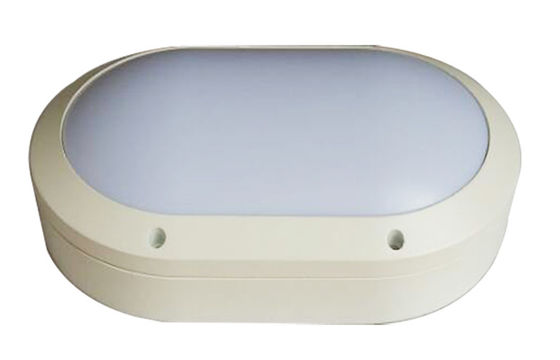

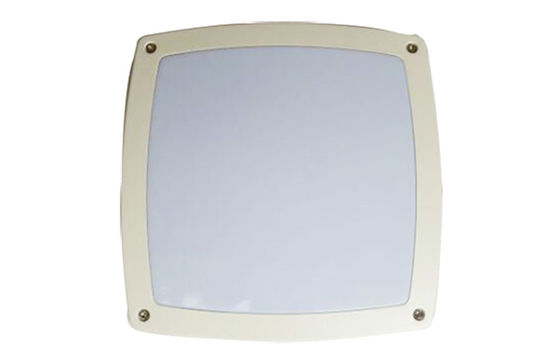

Bulkhead LED Light Photos:
Item | Name | Qty | Unit | Remark |
1 | 20W LED bulkhead light | 1 | pc | |
2 | User Manual | 1 | pc | |
3 | Driver | 1 | pc |
Mount Methods :
Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw
to fix the lamp base and lamp cover.Installation methods : with the tapping
screws installed two holes of base to specified location
