Product Details:
Payment & Shipping Terms:
|
| Product Name: | 75W Shoebox Light | Power: | 75 W |
|---|---|---|---|
| Voltage: | 90-277VAC | IP Rate: | IP65 |
| High Light: | led roadway lighting,led area light |
||

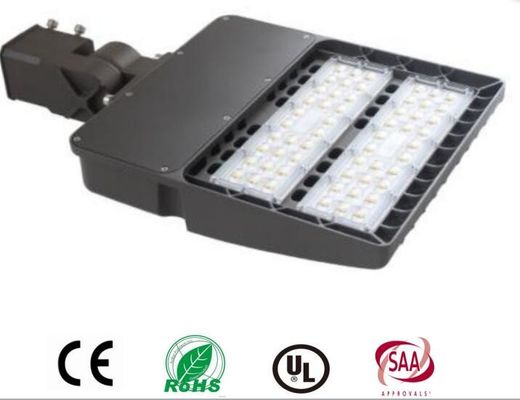

LED Shoebox Area light is low maintenance and energy saving solution to replace high pressure sodium and
metalhalide area lights. With different powers and differenct lumens output, led shoebox area light have a wide
applicationsuch as urban roads, parking lot, high way, industrial areas, sidewalks, squares, parks, gardens,

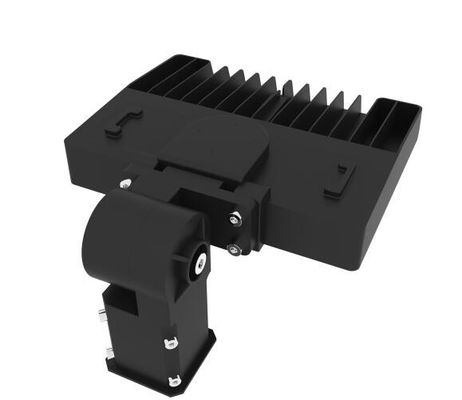

schools, residential areas. One fixture light with four installation kit options, and you are easy to cover full range of
lighting solutions for any outdoor area lighting applications.The long lifespan 50,000hours and 5 years warranty of
led shoebox area lightenables you not change the light very often, and it will dramatically reduce much installation
and maintenance costs a lot, it's really a fit and forget product.With DLC4.0 listed, you can also get much rebates
from Government.
| Model | SP-HS75W | ||
| Input Voltage | AC85-265VAC 50/60Hz | ||
| Dimension | 231.2*290.4*73mm | ||
| Lighting Source | 3528SMD | ||
| Power Consumption | 75W | ||
| Color Temperature | WW(2800~3000K) | NW(4000~4500K) | CW(6000~6500K) |
| Luminous Flux | 9350Lm | 9550Lm | 9750Lm |
| CRI(Ra) | >80 | ||
| Beam Angle | 40*70 | ||
| Work Temperature | -25℃～+45℃ | ||
| Material | Die Cast Aluminium +PC | ||
| GW | 9 | ||
| NW | 8KG | ||
| Power Factor | >0/9 | ||
| Lifespan (LED) | ≥50,000hrs (950% Lumen Maintenance) | ||
| IP Rating | IP65 | ||
| Lumen Attenuation | <5% @ 5,000hrs | ||
| LED Brand | |||
Item No.: SP-HS75W
Power (W): 75 Watts
Size(mm): 231.2*290.4*73mm
The hole of lamp-post: Φ62mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 2000K/3000K/4000K/5000K/6000K
Luminous Flux: 130lm/W
LED Quantity: 128 Pcs
Led Type:
Beam Angle: 70*140°
IP Grade: IP65
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Operating Temperature: -40-60℃
Anti-lightning: 6KV
CRI: >80
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years
Cautions:
·Pay attention to the voltage before using.
·Don't press LED surface.
·Don't take apart the product or replace mechanical and electronic components.
·Don't stare at the strong light for a long time as it may cause injury to eyes.
