150W chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof

Good quality Outside Bulkhead Lights for sales
Good quality Outside Bulkhead Lights for sales
Charoltte ,the IP 65 ceiling lights are with nice unqiue designing . thanks for your support as always

—— Henry Hendriks

well received the new containers of the high bays , superolux is the realiable supplier

—— adam fraum

I'm Online Chat Now

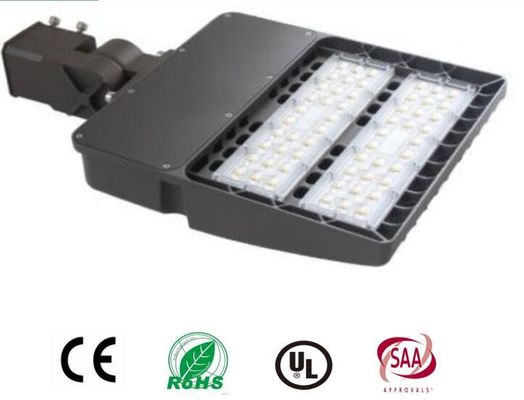

150W chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof

China 150W  chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof supplier
150W  chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof supplier 150W  chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof supplier

Large Image :  150W chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof

Product Details:

Place of Origin: China
Brand Name: superolux
Certification: DLC.UL ,CE,RoHS,SAA
Model Number: SP-HS100w

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: OEM package/standard export package
Payment Terms: L/C, T/T
Supply Ability: 50000pcs/week
Contact Now
Detailed Product Description
Product Name: 150W Led Shoe Box Light /parking Lot Light Power: 150 W
Light Efficiency: 140lm/Watt IP Rate: IP 65
Led Brand: Epistar Material: Die-cast Aluminum Housing
Voltage: 90-307VAC

Description :LED shoe box light is an ideal way to illuminate wide area ,usually the series of production are



designed with square or rectangle shape , constructed with Die-cast Aluminum housing and chip . the



150W LED shoe box light provide 140lm/watt light efficiency ,and 50000hours life span ,it's perfect lighting solution



for parking lot areas of any size !





150W led shoe box light/parking lot light parameters :




Model SP-HS150
Input Voltage AC90-307 50/60Hz
Dimension 125*324 mm
Lighting Source /cree/Osram
Power Consumption 150W
Color Temperature WW(2800~3000K) NW(4000~4500K) CW(6000~6500K)
Luminosity >19200 ≥19300 >19500
CRI(Ra) >80
Material Aluminium housing
Work Temperature -25℃~+45℃
Cover Material PC
LED QTY 128PCS
NW 1.0KG
Beam angle 70*140
Lifespan (LED) ≥50,000hrs (950% Lumen Maintenance)
IP rate IP 65
Lumen Attenuation <5% @ 5,000hrs
Power Factor >0.95





150W LED Shoe box light/parking lot light features :





1. LED Secondary Optics Lenses in our led shoebox light are made of highest grade PMMA with more than 90% light transmittance. They are UV and Ozone resistant. Our shoebox light have low glare.



2. LED Driver Taking superly reliable Meanwell HLG led driver with a 7 years warranty, it has many interesting features as options: 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming.Anti lightning 6000V.



3. LED Chip We are using led chips, with standard efficiency at least 130lm/W.Color temperautre 3000k, 4000k, 5000k, and 6000k are all available, and other CCT can also be customized upon request.







LED Shoe box light construction :





150W  chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof



150W  chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof

Product Drawing :



150W  chip LED Shoebox Light 140lm/Watt 90-307VAC IP65 waterproof
