Product Details:
Payment & Shipping Terms:
|
| Power: | 20W | Voltage: | 85-265VAC |
|---|---|---|---|
| CCT: | 3000K/4500K/6000K | IP Rate: | IP 65 |
| Luminous Flux: | 1600lumen | IK Rate: | IK10 |
| Size: | 270*270*100mm | Housing Material: | Die Cast Aluminum Housing |
| Warranty: | IP65 | ||
| High Light: | bulkhead outdoor wall light,ip65 bulkhead light |
||

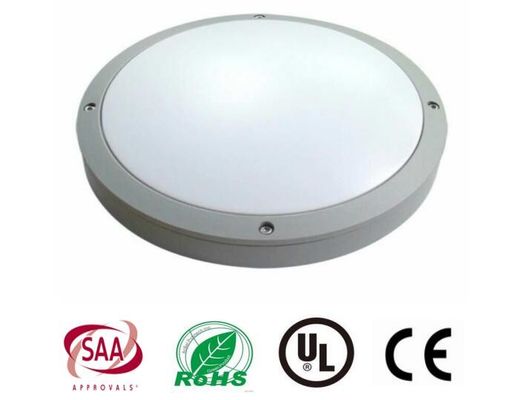

Description :Bulkhead wall lights is outdoor wall mounted lighting fixtures ,fitted in Aluminum housing with IK10
impact resistance rate .providing 1600lumen with IP65 waterproof rate , the bulkhead wall light is an ideal choice
for community buildings ,parking lot area , storage area lighting ,the Oval shape bulkhead wall light is with size
280*180*90mm, is a best replacement for HID wall light fixture
Qucik details for bulkhead wall light
1.power : 20W
2.Material : Die cast Aluminium housing
3 Luminous Flux : 1600lumen
4.CCT: 3000K/4500K/6000K
5.Voltage : 85-265VAC
6. IP rate : IP65
7 .IK rate : 1k10
8 Size : 270*270*100mm
Bulkhead wall light parameters :
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265V 42-63HZ |
| 2 | Input Current | 0.114A(230V) |
| 3 | Power | 20W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.67A |
| 6 | Power Factor | >0.9PF |
| 7 | Luminous Efficiency | ≥85% |
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 514cd |
| 3 | Luminous Flux | 1600Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 1.4Kg |
| 4 | Length | 270mm |
| 5 | Width | 270mm |
| 6 | Height | 80mm |
Applications for the bulkhead wall light .
indoor : bathroom ,living room ,spa ,hotel ,resturant , kitchen
outdoor : car park , villa ,community , garden ..etc
Mount Methods :Wall mounted /surface mounted /recessed
Installation instruction :
1,Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw to fix the lamp base and lamp cover.
2,Installation methods : with the tapping screws installed two holes of base to specified location( two holes are on the diagonal of base ).
3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion bolt. Screw through the screw hole of lamp body , screw in the expansion bolt
Bulkhead wall light drawing :
Production :
Aging test :
Contact us :
